$8891-4 Piece/Pieces
$8795-9 Piece/Pieces
$859≥10Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | EXW |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,QINGDAO,TIANJING |
Jenama: Lundi
Industri Yang Berkenaan: Hotel, kedai pakaian, kedai bahan binaan, kedai pembaikan jentera, kilang pembuatan, kilang makanan & minuman, ladang, runcit, kedai makanan, kedai percetakan, kerja pembinaan, tenaga & perlombongan, kedai makanan & minuman, syarikat pengiklana, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Ladang, Kegunaan Rumah, Runcit, Syarikat pengiklanan, Tenaga & Perlombongan, Kedai Makanan & Minuman
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: AC Motor
Min. Mengangkat Ketinggian: 90mm
Dimensi Keseluruhan: 50*160*1100 s/e/l (mm)
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: 1 tahun
Komponen Teras: Kapal tekanan, Motor, yang lain, Galas, Gear, Pam, Kotak gear, Enjin

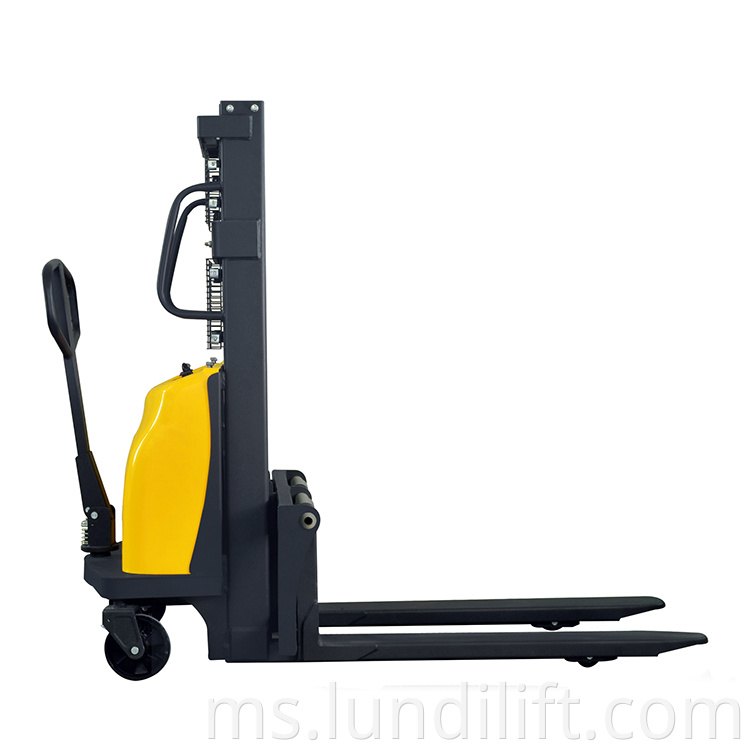

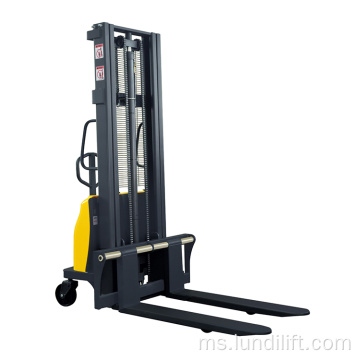

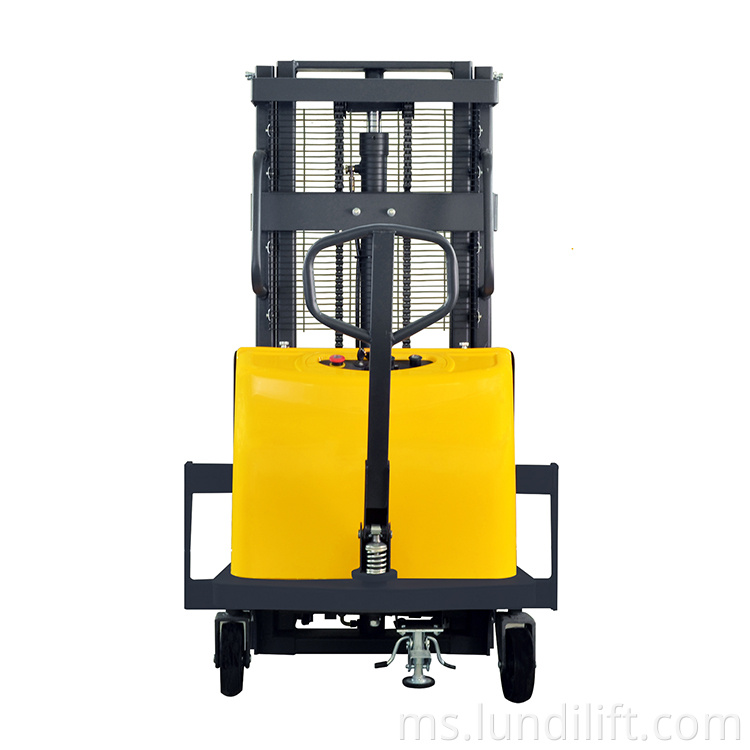

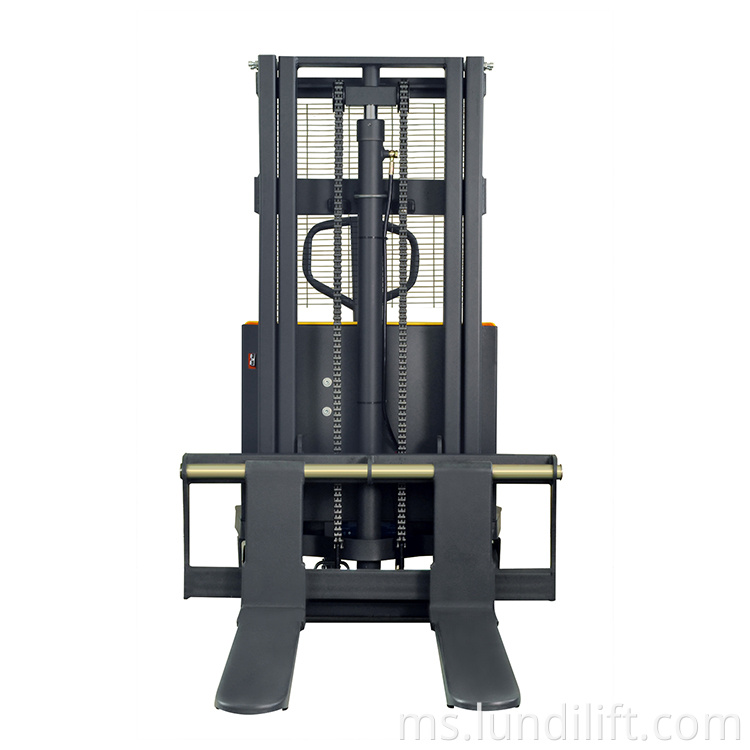

Model: BDD15
Mod Kerja: Semi-elektrik
Weight(with Battery): 400kg
Ketinggian Angkat: 2000mm
Panjang Keseluruhan: 1860mm
Lebar Keseluruhan: 800mm
Sistem Kawalan Memandu: Ac
Tempoh Jaminan: 1 tahun
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Panjang Garpu: 1100 mm
Lebar Garpu: 320-1030mm, 320-1030mm
Pensijilan: CE, CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Model |
|
BDD15 |
|
Working mode |
|
Electric |
|
Driving mode |
|
Walkie |
|
Rated load |
Q (kg) |
1500 |
|
Load centre distance |
c (mm) |
500 |
|
Front suspension |
x (mm) |
745 |
|
Wheel spacing |
Y (mm) |
1200 |
|
Weight (with battery) |
kg |
400 |
|
Wheels |
|
nylon |
|
Wheel size, front wheel |
|
Φ180*50 |
|
Wheel size, rear wheel |
|
Φ80×70 |
|
Wheel, front and rear number (x = drive wheel) |
|
2/2 |
|
Front wheel |
b10(mm) |
690 |
|
Rear wheel |
b11(mm) |
410/525 |
|
Lift height |
h1(mm) |
2000 |
|
Height of door frame retracted |
h3(mm) |
1590 |
|
Maximum height of gantry during operation |
h4(mm) |
2500 |
|
Lower height |
h13(mm) |
90 |
|
Overall length |
l1(mm) |
1860 |
|
Length of fork |
l2(mm) |
1100 |
|
Overall width |
b1(mm) |
800 |
|
Fork size |
S/e/l (mm) |
50×160×1100 |
|
Fork width |
b5(mm) |
320-1030 |
|
Distance center off clearance |
m2(mm) |
40 |
|
Channel width, tray 1000 x1200(1200 cross fork placement) |
Ast(mm) |
2305 |
|
Channel width, pallet 800 x1200(1200 placed along fork) |
Ast(mm) |
2258 |
|
Turning radius |
Wa(mm) |
1425 |
|
Speed up, full load/ no load |
m/s |
0.08/0.1 |
|
Drop speed, full load/ no load |
m/s |
0.15/0.12 |
|
Driving brake |
|
Mechanical braking |
|
Lift motor power |
kW |
2.2 |
|
Battery voltage/ rated capacity |
V/Ah |
12/120 |
|
Battery weight |
Kg |
43 |
|
Driver's Ear Noise Level DIN12053 |
dB (A) |
≤70 |
S1: Adakah anda kilang?
A1: Sudah tentu.
