$8991-5 Piece/Pieces
$8896-15 Piece/Pieces
$869≥16Piece/Pieces
| Jenis bayaran: | Western Union,D/P,D/A,T/T |
| Incoterm: | FOB |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,TIANJING,QINGDAO |
Jenama: Lundi
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Brand Name: LunDI
Power Souce: Ac Motor
Min. Lifting Height: 90mm
Overall Dimensions: 1860 l1(mm)
Warranty: 1 Year
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Komponen Teras: Kapal tekanan, Motor, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: BDD15
Working Mode: Semi-Electric
Weight(with Battery): 380kg
Lift Height: 1600mm
Overall Length: 1860mm
Overall Width: 800mm
Drivering Control System: AC
Tempoh Jaminan: 1 tahun
After Warranty Service: Online Support
Local Service Location: None
After-sales Service Provided: Online Support
Industri Yang Berkenaan: Hotel, Kedai Pakaian, Kedai Bahan Binaan, Tenaga & Perlombongan, Kedai Makanan & Minuman, Kedai Pembaikan Jentera, Loji Pembuatan, Syarikat pengiklanan, Ladang, Kegunaan Rumah, Runcit
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Place Of Origin: Jiangsu, China
Fork Length: 1100 mm
Fork Width: 690 mm
Fork Width: 320-1030mm
Certification: CE, CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |

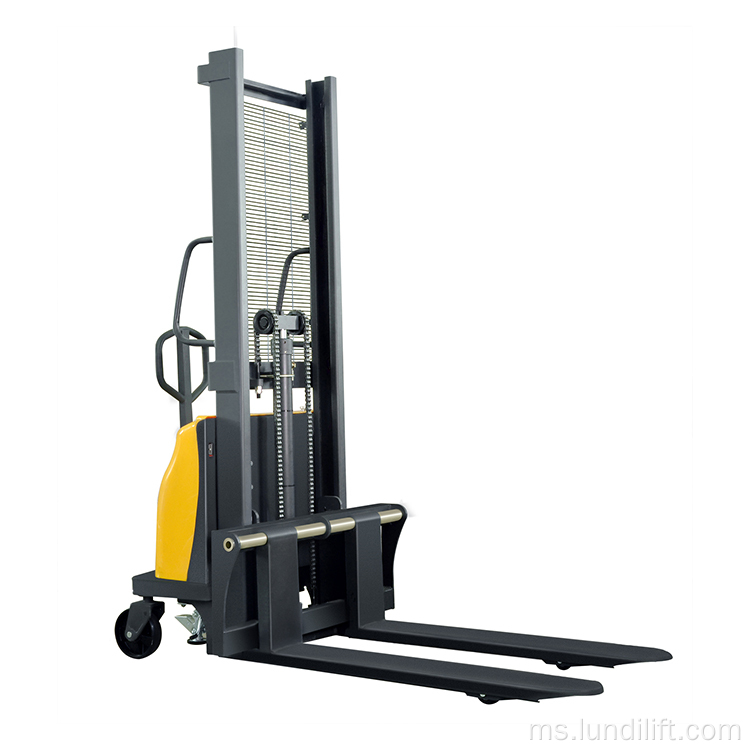

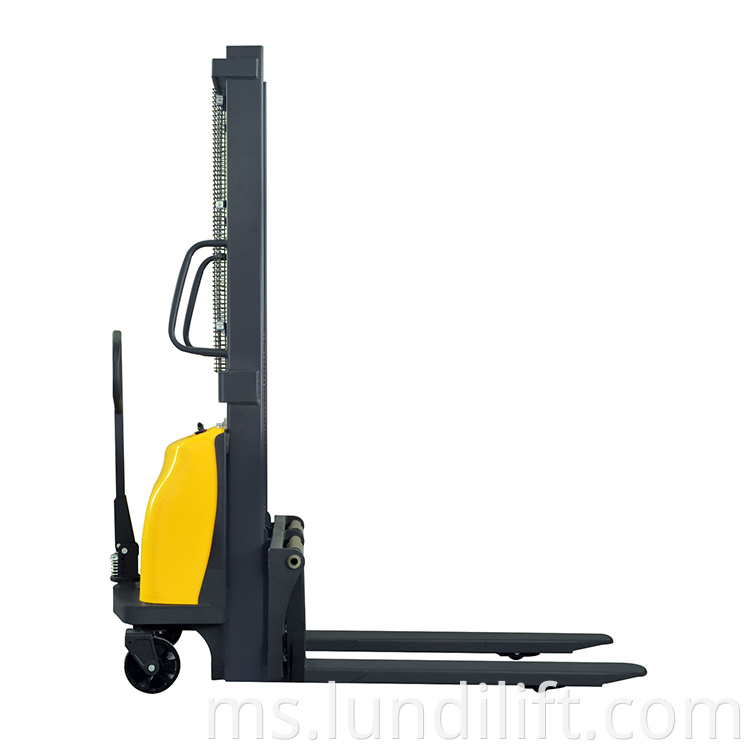

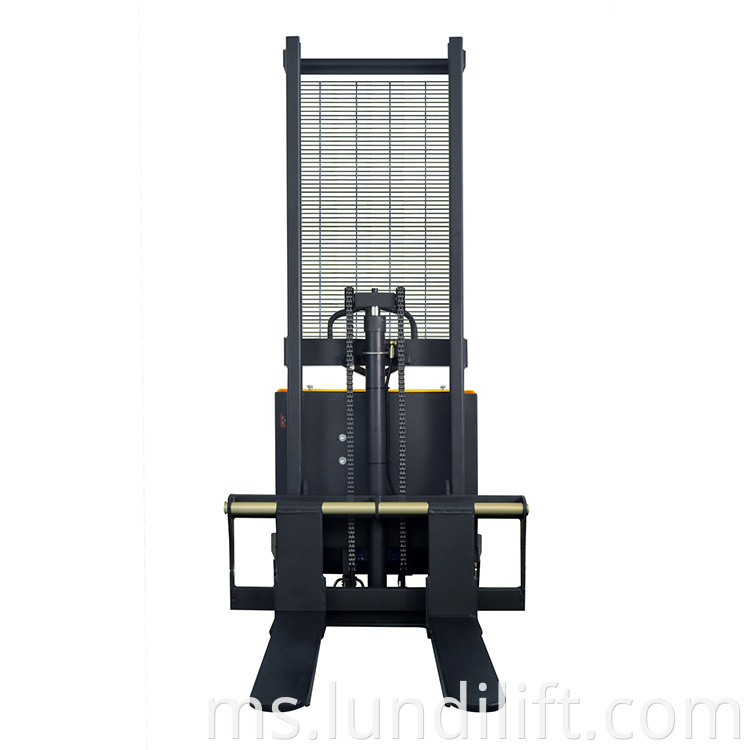

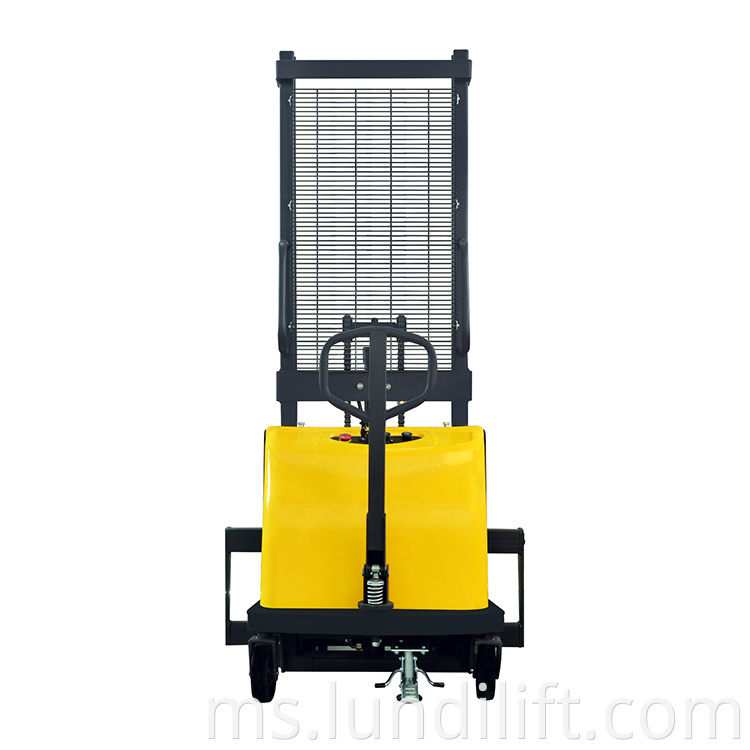

| Contoh Gambar | : |
|
|
Model |
|
BDD15 |
|
Working mode |
|
Electric |
|
Driving mode |
|
Walkie |
|
Rated load |
Q (kg) |
1500 |
|
Load centre distance |
c (mm) |
500 |
|
Front suspension |
x (mm) |
745 |
|
Wheel spacing |
Y (mm) |
1200 |
|
Weight (with battery) |
kg |
380 |
|
Wheels |
|
nylon |
|
Wheel size, front wheel |
|
Φ180*50 |
|
Wheel size, rear wheel |
|
Φ80×70 |
|
Wheel, front and rear number (x = drive wheel) |
|
2/2 |
|
Front wheel |
b10(mm) |
690 |
|
Rear wheel |
b11(mm) |
410/525 |
|
Lift height |
h1(mm) |
1600 |
|
Height of door frame retracted |
h3(mm) |
2090 |
|
Maximum height of gantry during operation |
h4(mm) |
2100 |
|
Lower height |
h13(mm) |
90 |
|
Overall length |
l1(mm) |
1860 |
|
Length of fork |
l2(mm) |
1100 |
|
Overall width |
b1(mm) |
800 |
|
Fork size |
S/e/l (mm) |
50×160×1100 |
|
Fork width |
b5(mm) |
320-1030 |
|
Distance center off clearance |
m2(mm) |
40 |
|
Channel width, tray 1000 x1200(1200 cross fork placement) |
Ast(mm) |
2305 |
|
Channel width, pallet 800 x1200(1200 placed along fork) |
Ast(mm) |
2258 |
|
Turning radius |
Wa(mm) |
1425 |
|
Speed up, full load/ no load |
m/s |
0.08/0.1 |
|
Drop speed, full load/ no load |
m/s |
0.15/0.12 |
|
Driving brake |
|
Mechanical braking |
|
Lift motor power |
kW |
2.2 |
|
Battery voltage/ rated capacity |
V/Ah |
12/120 |
|
Battery weight |
Kg |
43 |
|
Driver's Ear Noise Level DIN12053 |
dB (A) |
≤70 |

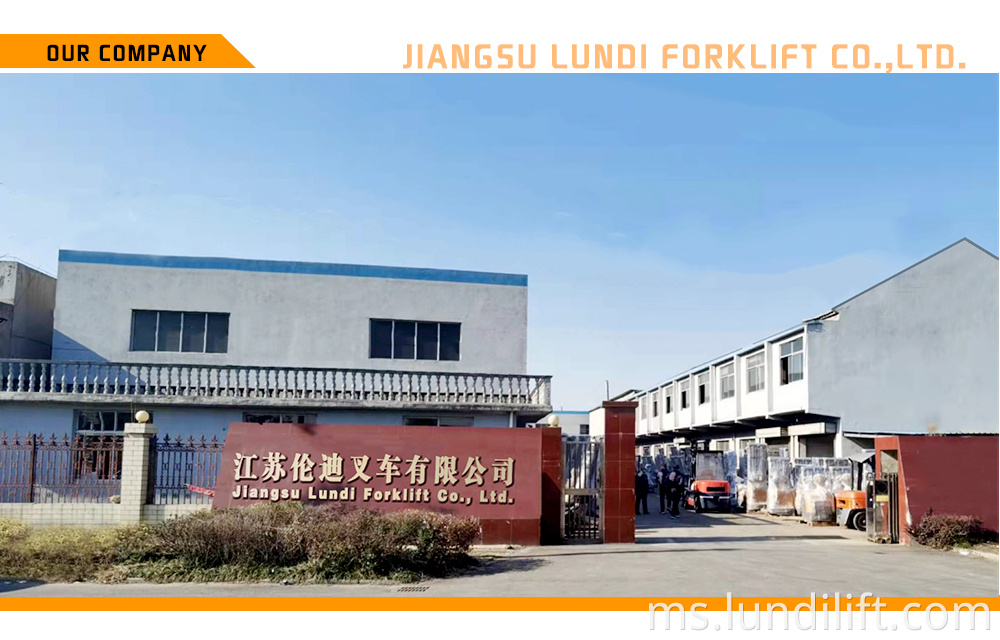

Jiangsu Lundi Forklif Co.ltd.is peralatan logistik R & D dan pembekal pengeluaran. Syarikat mempunyai berteknologi tinggi
S1: Adakah anda kilang?
A1: Sudah tentu.
Q2. Bagaimana lona yang diperlukan untuk melaksanakan myorder?
A2.Please Beritahu kami jumlah kuantiti dan model produk yang akan anda pesan. supaya wewigiveyouadetaiedschedule
Q3.Adakah anda menawarkan reka bentuk tersuai?
A3.CUSTOM DESIQN pasti ada. Kami mempunyai pengalaman yang sangat kaya dalam menyesuaikan forklift.
S4: Bagaimana dengan dasar sampel?
A4 kita boleh menerima pesanan sampel untuk menguji kualiti. Tapi sampel dan caj ekspres mestilah di akaun pelanggan
S5: Bagaimana dengan Penghantaran Waktu?
A5: Biasanya Lundi menghasilkan masa 15-20 hari bekerja setelah kami menerima pembayaran lanjutan
Bagi sesetengah produk standard yang paling banyak ada dalam stok dan boleh dilepaskan
S6: Apakah istilah pembayaran anda?
A6: T/T atau L/C, jika anda mahukan cara lain, sila hubungi kami.
S7: Mayivisit syarikat anda?
A7.Kami sentiasa gembira untuk melayani anda kilang kami terletak di wilayah Taizhoujangang. Terdapat penerbangan antarabangsa yang berdekatan dan lalu lintas dibangunkan dengan baik.
