$8991-2 Piece/Pieces
$8693-5 Piece/Pieces
$829≥6Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | EXW |
| Pengangkutan: | Land,Ocean |
| Port: | TIANJING,QINGDAO,SHANGHAI |
Jenama: Lundi
Industri Yang Berkenaan: Kedai Bahan Bangunan, Loji Pembuatan, Penggunaan Rumah, Lain -lain, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Kedai Makanan & Minuman, Tenaga & Perlombongan, Syarikat pengiklanan, Ladang, Kegunaan Rumah, Runcit
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: Motor
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: Yang lain
Komponen Teras: Motor, Kapal tekanan, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: BDD15
Mod Kerja: Semi-elektrik
Berat (dengan Bateri): 440
Ketinggian Angkat: 2500
Panjang Keseluruhan: 1860
Lebar Keseluruhan: 800
Sistem Kawalan Memandu: Ac
Tempoh Jaminan: 1 tahun
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Lebar Garpu: 320-1030
Pensijilan: CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem yang dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|

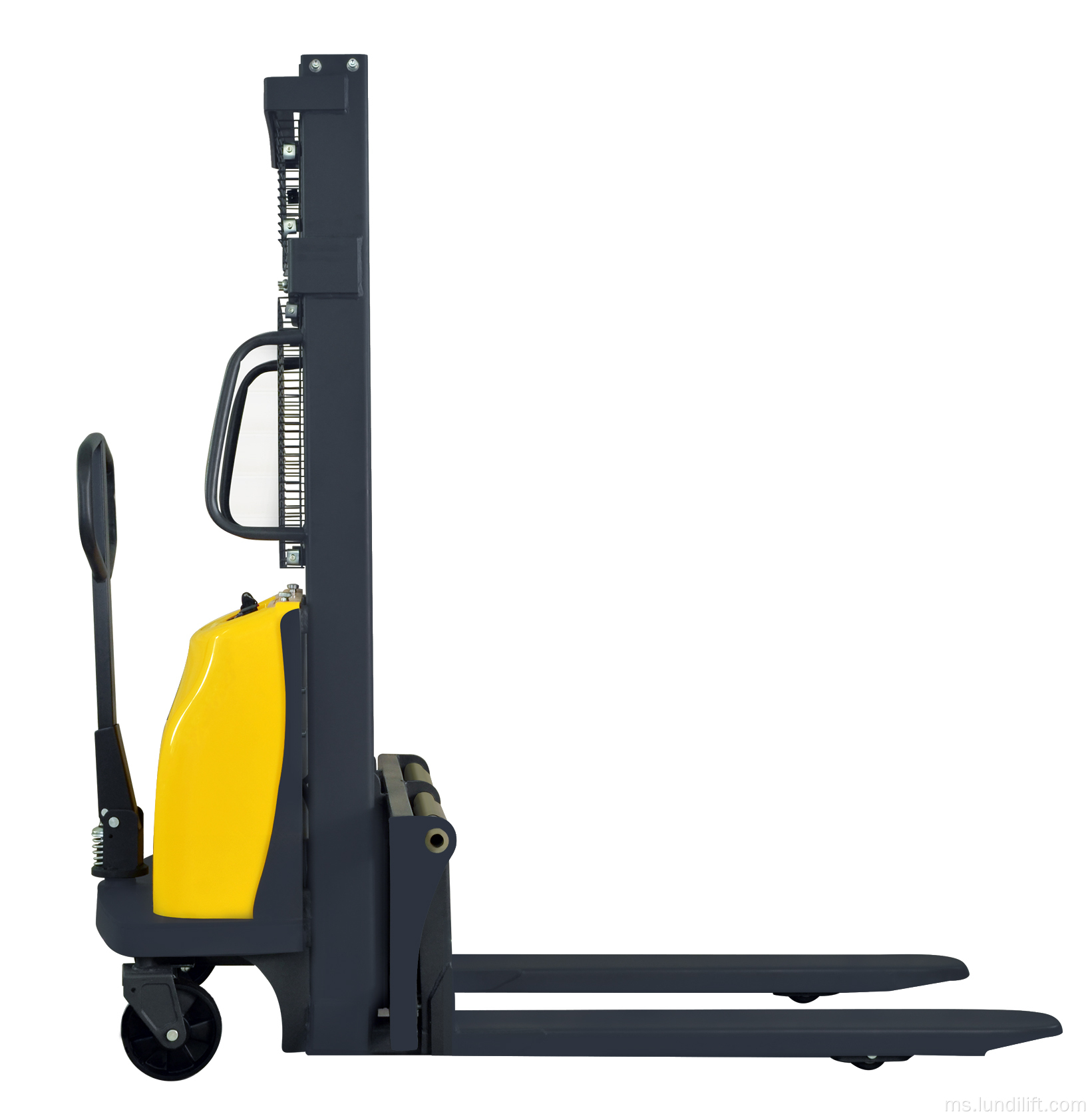

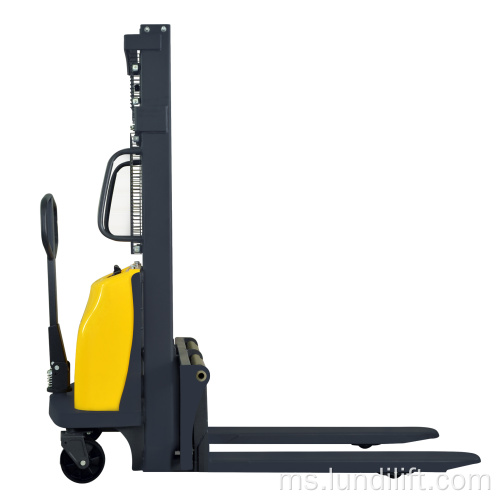

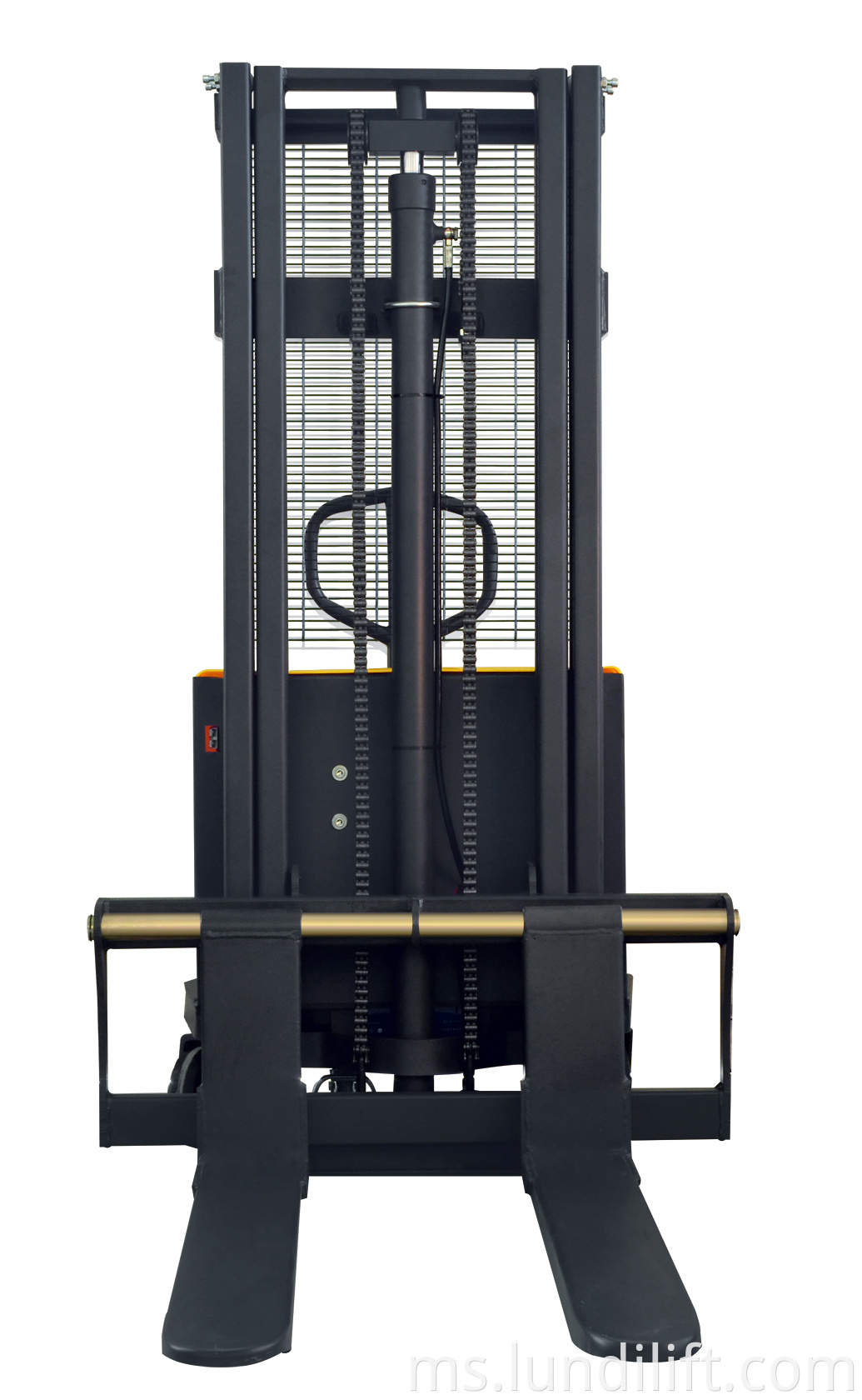

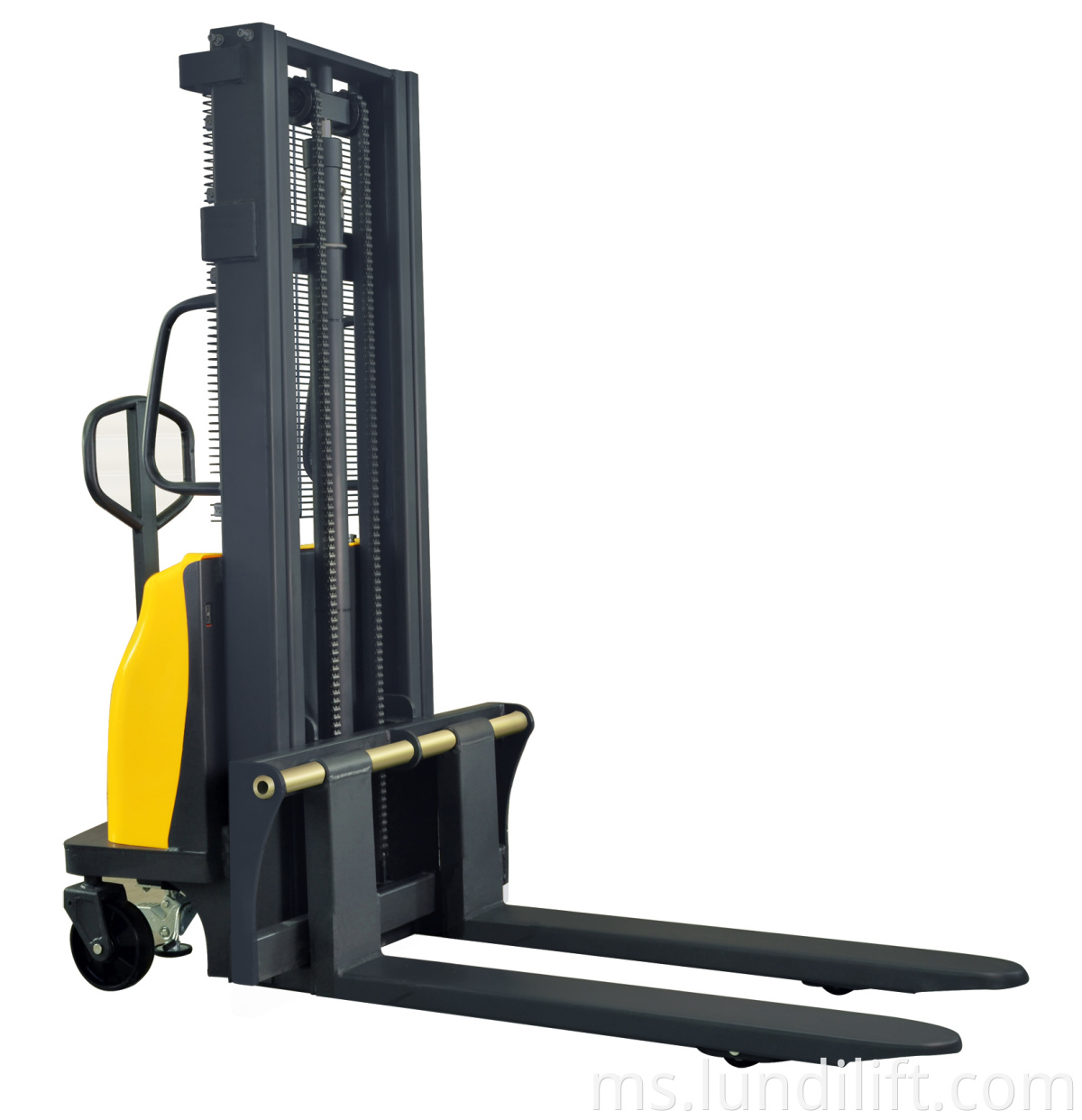

Semi-electric Stacker
|
|
|
||
|
Model
|
|
BDD15
|
||
|
Working mode
|
|
Electric
|
||
|
Driving mode
|
|
Walkie
|
||
|
Rated load
|
Q (kg)
|
1500
|
||
|
Load centre distance
|
c (mm)
|
500
|
||
|
Front suspension
|
x (mm)
|
745
|
||
|
Wheel spacing
|
Y (mm)
|
1200
|
||
|
Weight (with battery)
|
kg
|
440
|
||
|
Wheels
|
|
nylon
|
||
|
Wheel size, front wheel
|
|
Φ180*50
|
||
|
Wheel size, rear wheel
|
|
Φ80×70
|
||
|
Wheel, front and rear number (x = drive wheel)
|
|
2/2
|
||
|
Front wheel
|
b10(mm)
|
690
|
||
|
Rear wheel
|
b11(mm)
|
410/525
|
||
|
Lift height
|
h1(mm)
|
2500
|
||
|
Height of door frame retracted
|
h3(mm)
|
1840
|
||
|
Maximum height of gantry during operation
|
h4(mm)
|
3000
|
||
|
Lower height
|
h13(mm)
|
90
|
||
|
Overall length
|
l1(mm)
|
1860
|
||
|
Length of fork
|
l2(mm)
|
1100
|
||
|
Overall width
|
b1(mm)
|
800
|
||
|
Fork size
|
S/e/l (mm)
|
50×160×1100
|
||
|
Fork width
|
b5(mm)
|
320-1030
|
||
|
Distance center off clearance
|
m2(mm)
|
40
|
||
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
2305
|
||
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
2258
|
||
|
Turning radius
|
Wa(mm)
|
1425
|
||
|
Speed up, full load/ no load
|
m/s
|
0.08/0.1
|
||
|
Drop speed, full load/ no load
|
m/s
|
0.15/0.12
|
||
|
Driving brake
|
|
Mechanical braking
|
||
|
Lift motor power
|
kW
|
2.2
|
||
|
Battery voltage/ rated capacity
|
V/Ah
|
12/120
|
||
|
Battery weight
|
Kg
|
43
|
||
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
||
|
|
|
|
||||
Jiangsu Lundi Forklif Co.ltd.is peralatan logistik R & D dan pembekal pengeluaran. Syarikat mempunyai berteknologi tinggi
