$72001-2 Piece/Pieces
$71603-5 Piece/Pieces
$7100≥6Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,TIANJING,QINGDAO |
Jenama: Lundi
Industri Yang Berkenaan: Kedai Bahan Bangunan, Loji Pembuatan, Penggunaan Rumah, Lain -lain, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Ladang, Kegunaan Rumah, Runcit, Syarikat pengiklanan, Tenaga & Perlombongan, Kedai Makanan & Minuman
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: Motor
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: Yang lain
Komponen Teras: Motor, Kapal tekanan, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: CPD-S20
Mod Pemacu: Elektrik
Mod Memandu: Elektrik
Weight (with Battery): 1970
Ketinggian Angkat: 4500
Panjang Keseluruhan: 3100
Lebar Keseluruhan: 880
Sistem Kawalan Memandu: Ac
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Tempoh Jaminan: 1 tahun
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Lebar Garpu: 200-660
Pensijilan: CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |

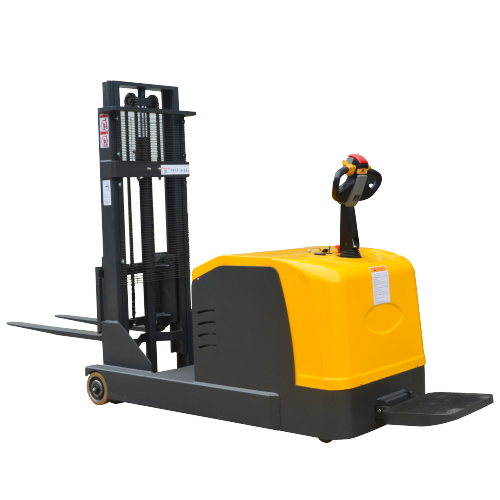

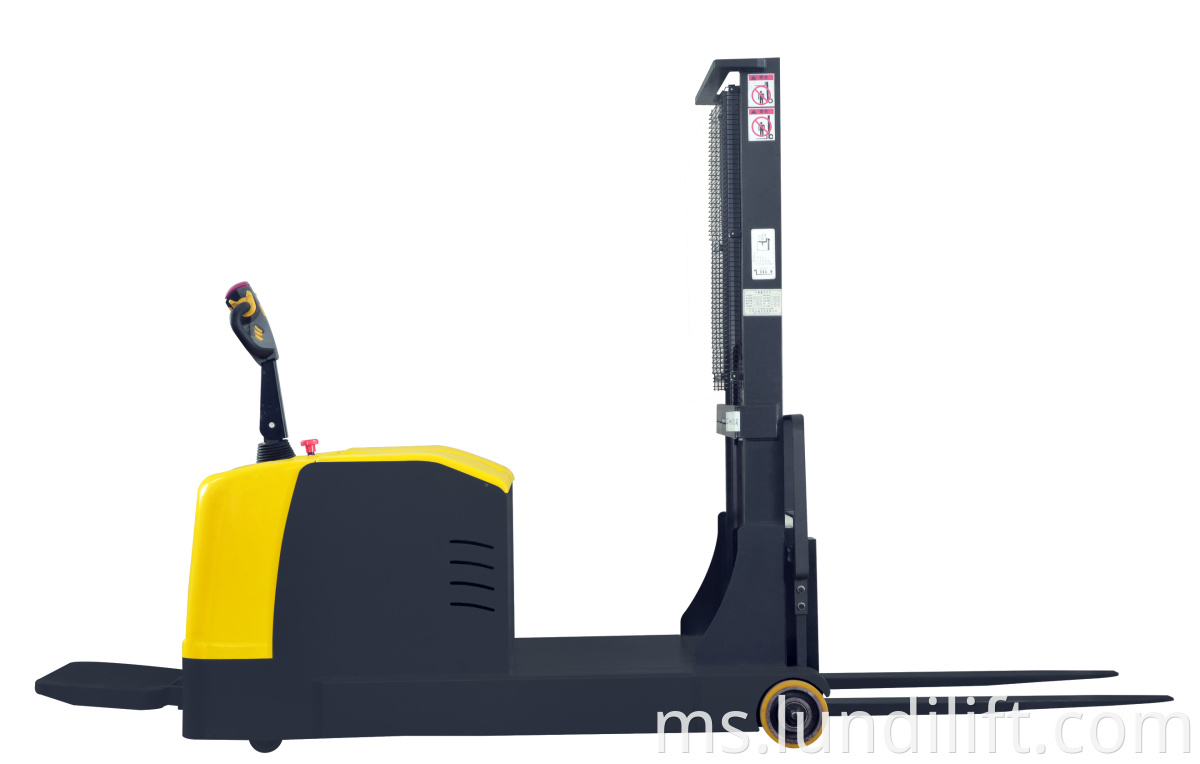

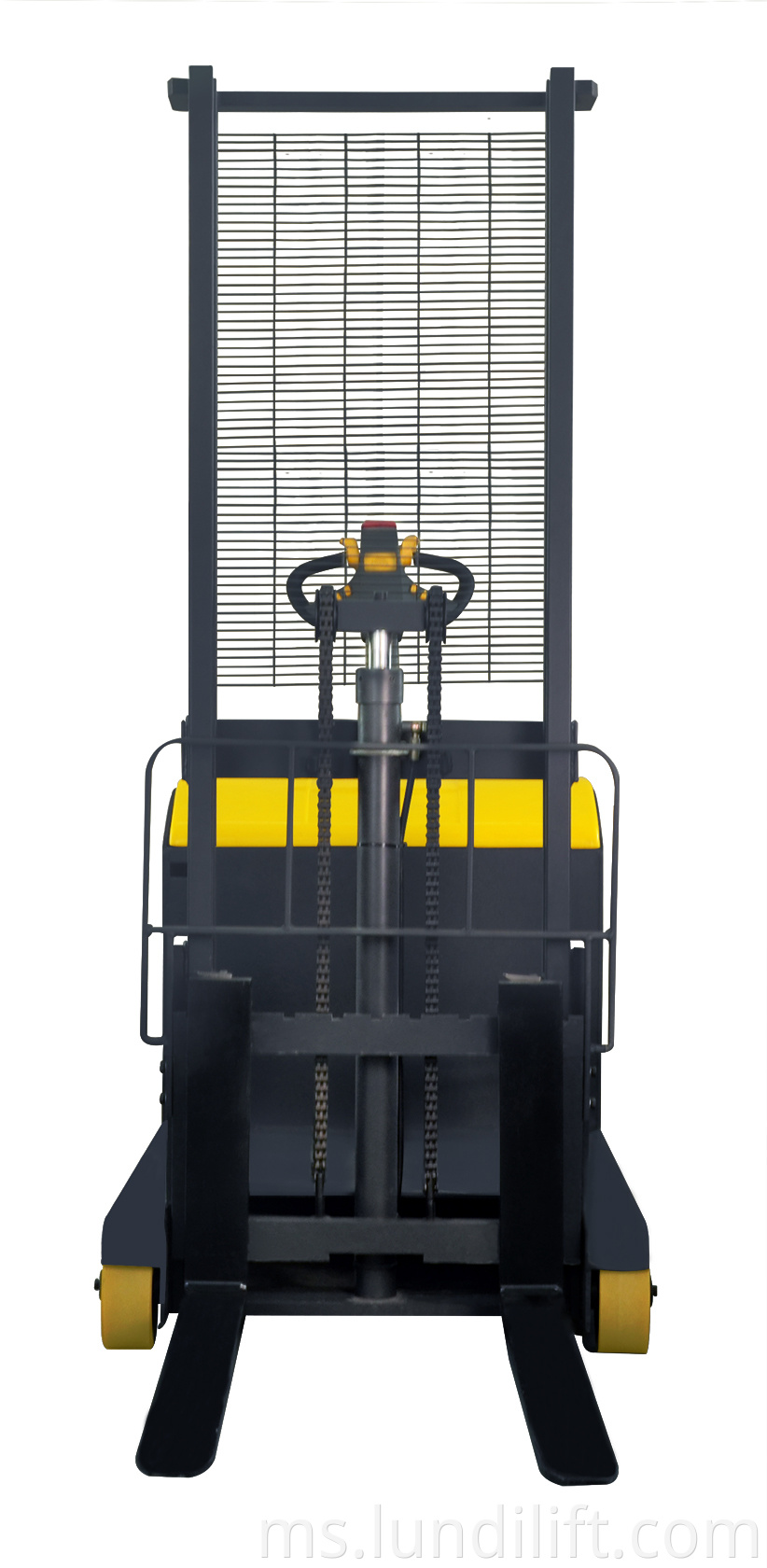

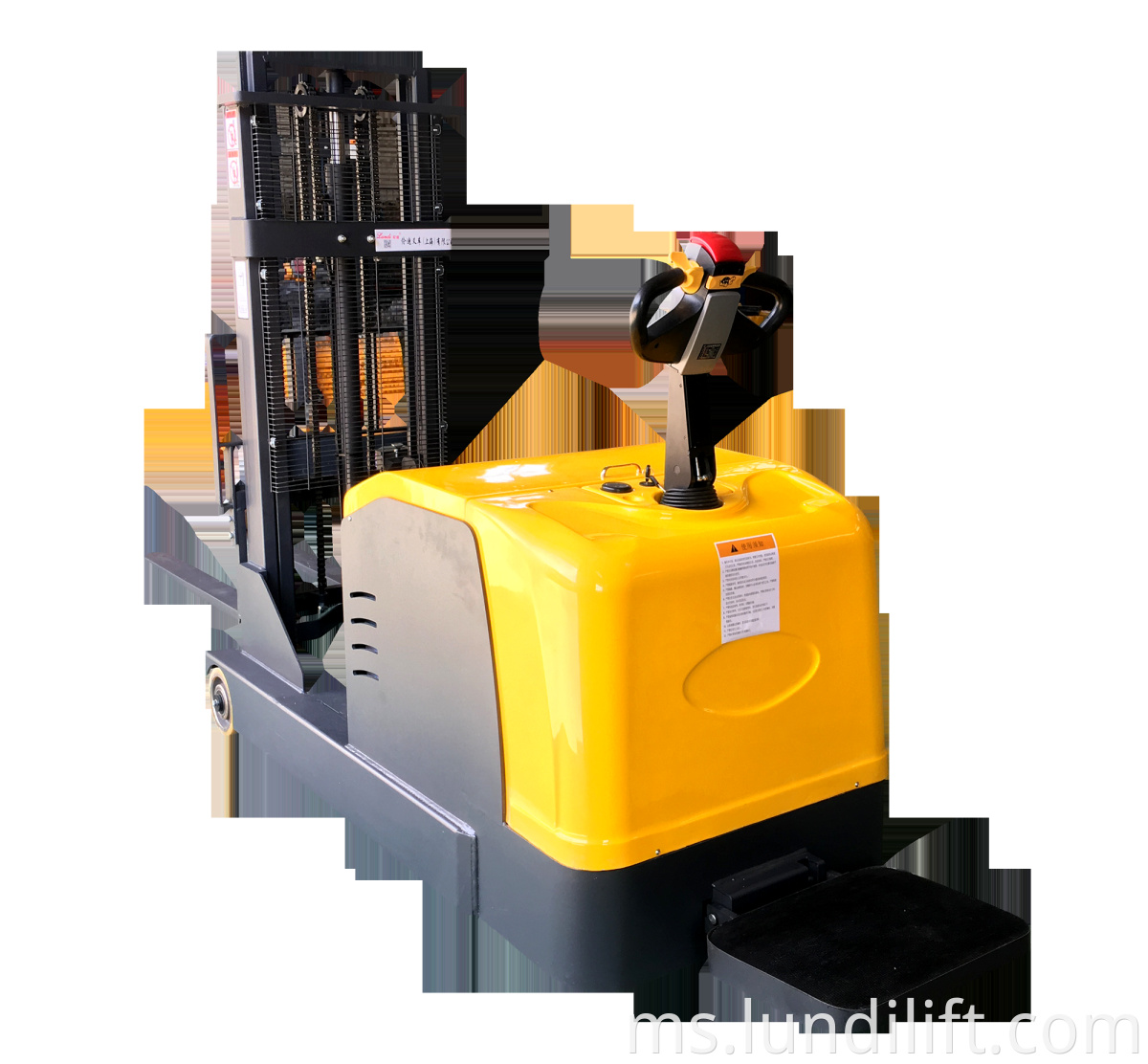

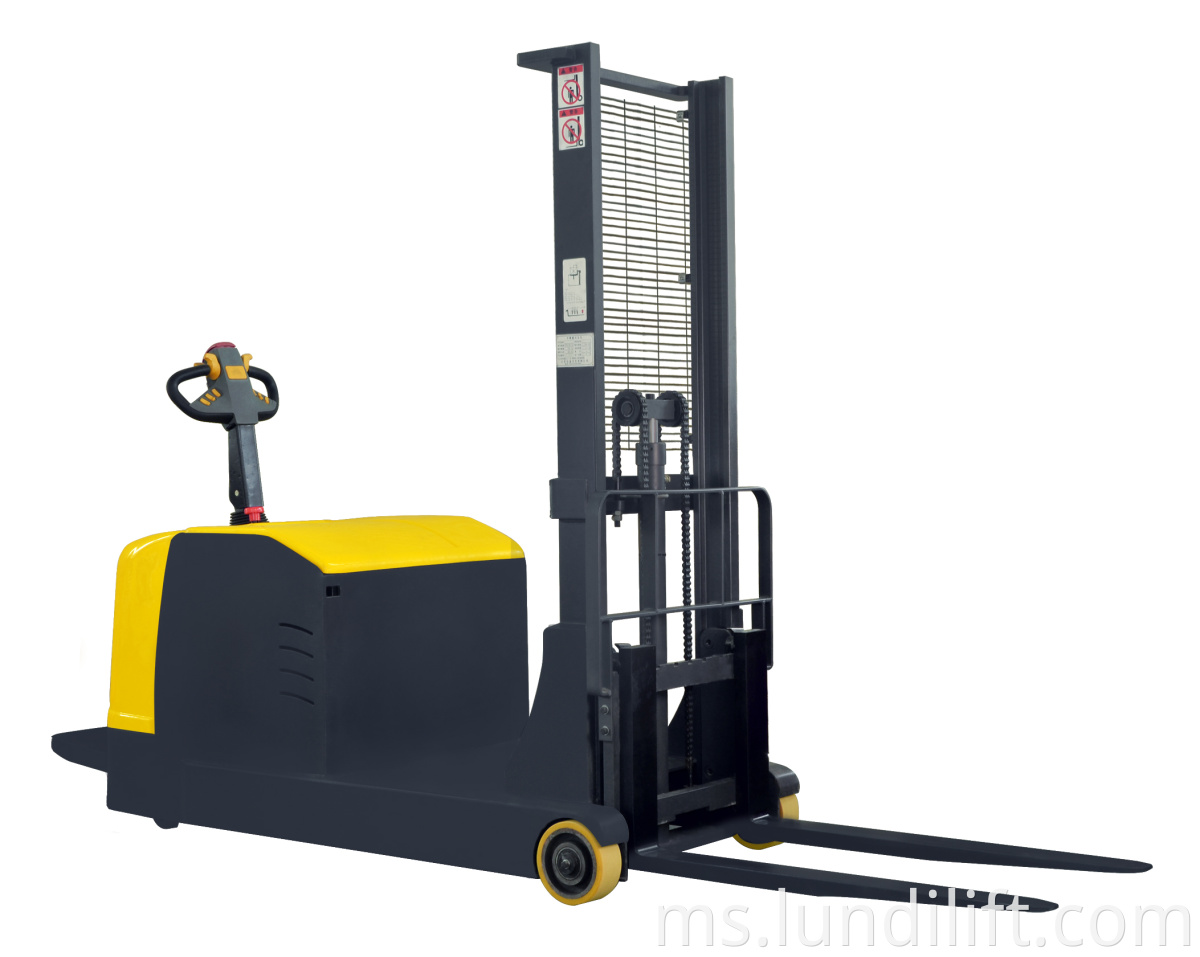

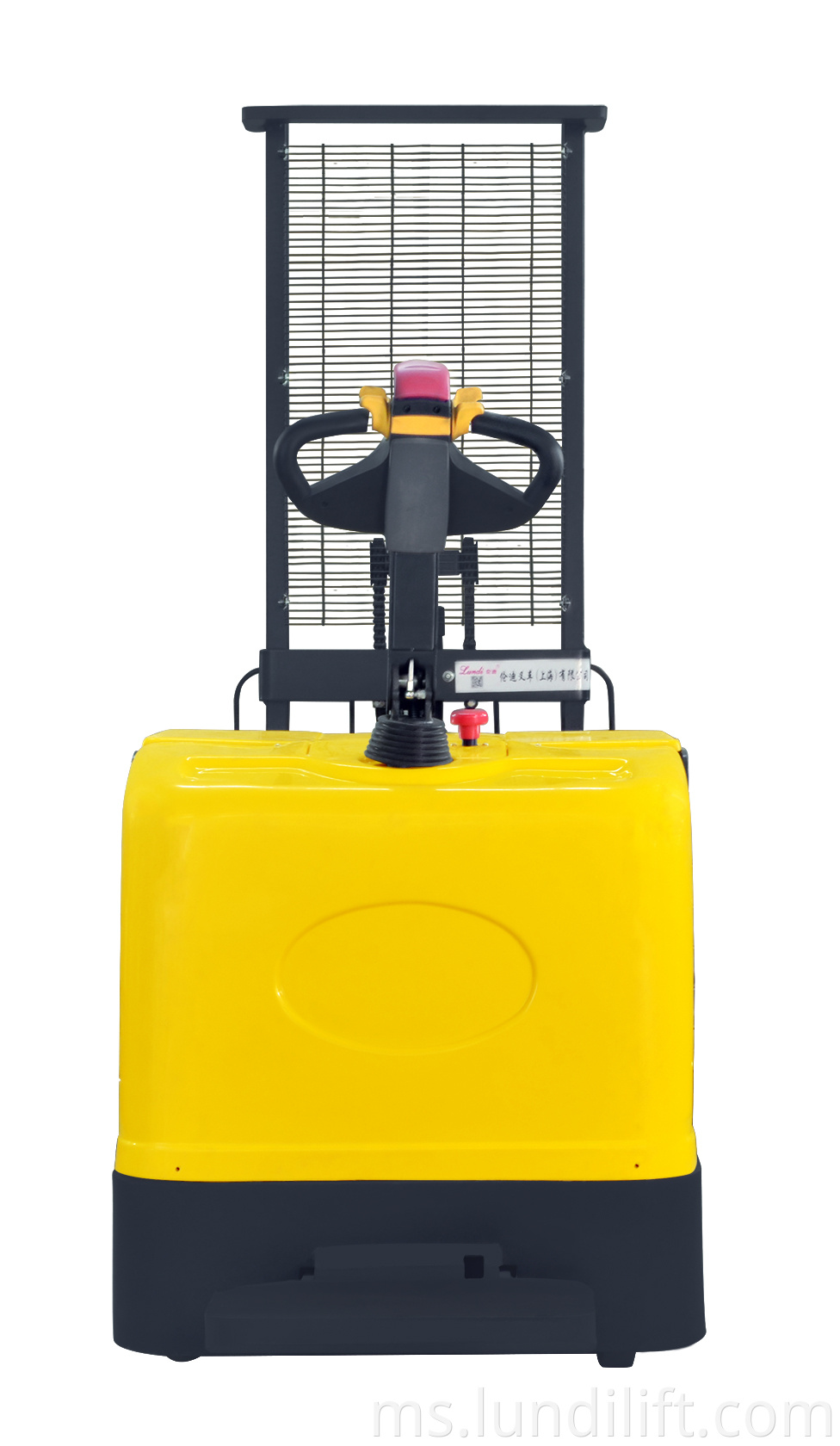

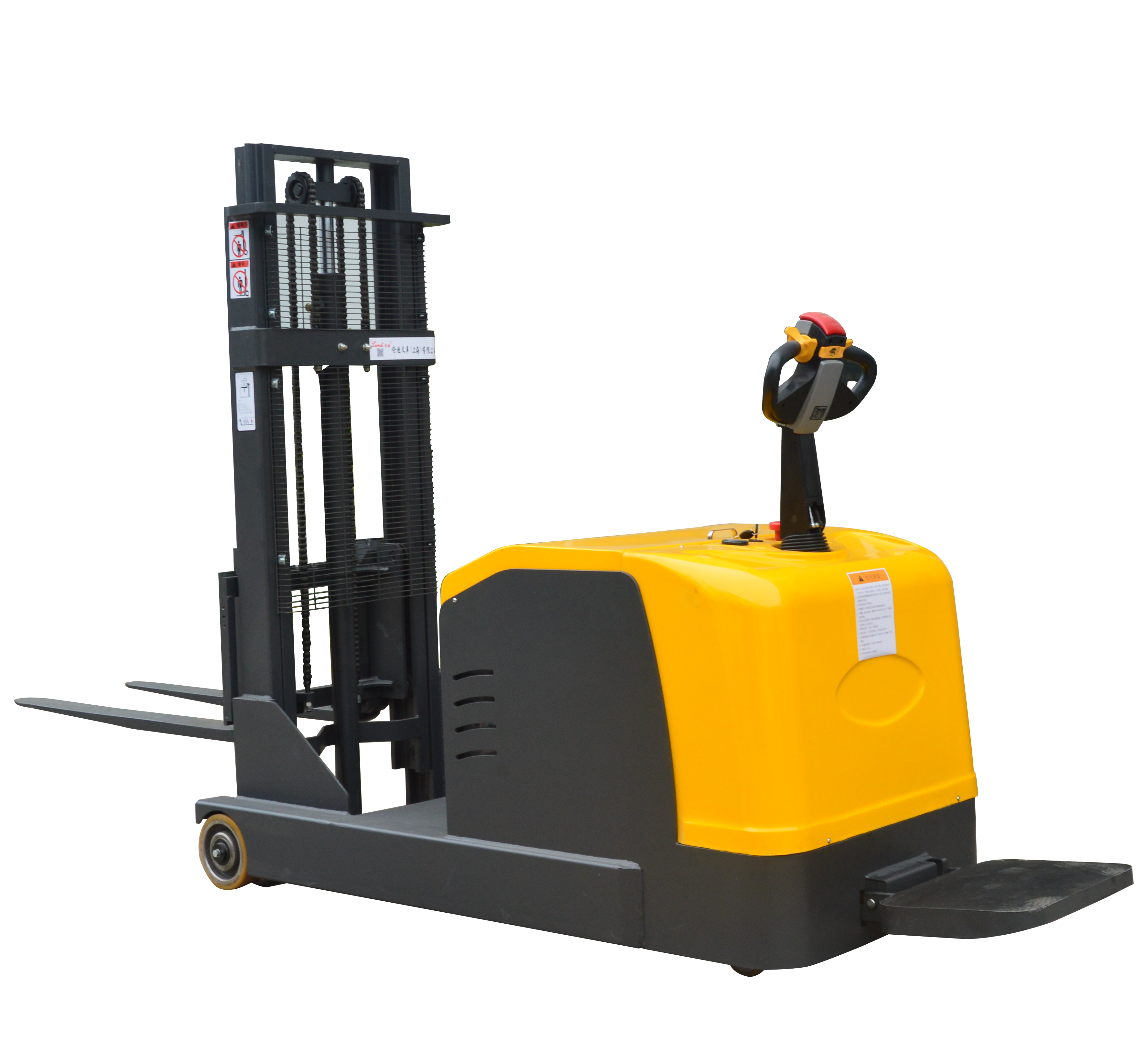

| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | CPD-S20 | |
| Drive mode | Electric (battery) | |
| Driving mode | Stand by | |
| Rated load | Q (kg) | 1000 |
| Load centre distance | c (mm) | 500 |
| Wheel spacing | Y (mm) | 1680 |
| Weight (with battery) | kg | 1750-1880 |
| Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels) | Polyamine ester wheel | |
| Wheel size, front wheel | mm | Φ250×80 |
| Wheel size, rear wheel | mm | Φ200X80 |
| Wheel, front and rear number (x = drive wheel) | x/2 1 | |
| Rear wheel | b11(mm) | 780 |
| Lift height | h3(mm) | 2000 |
| Height of door frame lowered | h1(mm) | 1590 |
| Maximum vehicle height during operation | h4(mm) | 2590 |
| Lower height | h13(mm) | 35 |
| Overall length | l1(mm) | 3100 |
| Overall width | b1(mm) | 880 |
| Fork size | S/e/l (mm) | 120/35/1070 |
| Fork width | b5(mm) | 200~660 |
| Minimum clearance from ground | m2(mm) | 50~110 |
| Channel width, tray 1000 x1200(1200 cross fork placement) | Ast(mm) | 3300 |
| Channel width, pallet 800 x1200(1200 placed along fork) | Ast(mm) | 3280 |
| Turning radius | Wa(mm) | 1510 |
| Speed, full/no load | Km/h | 4.5/5.2 |
| Speed up, full load/ no load | m/s | 0-0.12/0-0.2 |
| Drop speed, full load/ no load | m/s | 0-0.2/0-0.18(adjustable) |
| Climbing capacity, loading/unloading | % | May 8 |
| Driving brake | Electromagnetic - regenerative braking | |
| Drive motor power | kW | 1.5(AC) |
| Lift motor power | kW | 2.2 |
| Battery voltage/ rated capacity | V/Ah | 24V /130A/210A /24 A 0 |
| Driver's Ear Noise Level DIN12053 | dB (A) |
≤70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
