$55991-5 Piece/Pieces
$5499≥6Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | FOB |
| Pengangkutan: | Ocean,Land |
| Port: | TIANJING,SHANGHAI,QINGDAO |
Jenama: Lundi
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: Motor
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: Yang lain
Komponen Teras: Motor, Kapal tekanan, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: CPD-S20
Mod Pemacu: Elektrik
Berat (dengan Bateri): 1855
Ketinggian Angkat: 3500
Panjang Keseluruhan: 3100
Lebar Keseluruhan: 880
Sistem Kawalan Memandu: Ac
Selepas Perkhidmatan Jaminan: Sokongan Teknikal Video, Sokongan Dalam Talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Industri Yang Berkenaan: Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Ladang, Kegunaan Rumah, Runcit, Tenaga & Perlombongan, Kedai Makanan & Minuman, Syarikat pengiklanan, Hotel, kedai pakaian, kedai bahan binaan, kedai pembaikan jentera, kilang pembuatan, kilang makanan & minuman, ladang, restoran, penggunaan rumah, runcit, kedai makanan, kedai percetakan, kerja pembinaan, tenaga & perlombongan, kedai makanan &
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Tempoh Jaminan: 1 tahun
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Panjang Garpu: 1200
Lebar Garpu: 200-660
Pensijilan: CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|

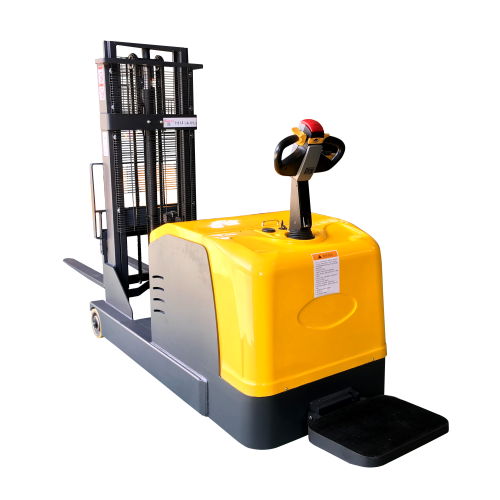

Model
|
|
CPD-S20
|
|
Drive mode
|
|
Electric (battery)
|
|
Driving mode
|
|
Stand by
|
|
Rated load
|
Q (kg)
|
1000
|
|
Load centre distance
|
c (mm)
|
500
|
|
Wheel spacing
|
Y (mm)
|
1680
|
|
Weight (with battery)
|
kg
|
1855
|
|
Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels)
|
|
Polyamine ester wheel
|
|
Wheel size, front wheel
|
mm
|
Φ250×80
|
|
Wheel size, rear wheel
|
mm
|
Φ200X80
|
|
Wheel, front and rear number (x = drive wheel)
|
|
x/2 1
|
|
Rear wheel
|
b11(mm)
|
780
|
|
Lift height
|
h3(mm)
|
3500
|
|
Height of door frame lowered
|
h1(mm)
|
2340
|
|
Maximum vehicle height during operation
|
h4(mm)
|
4090
|
|
Lower height
|
h13(mm)
|
35
|
|
Overall length
|
l1(mm)
|
3100
|
|
Overall width
|
b1(mm)
|
880
|
|
Fork size
|
S/e/l (mm)
|
120/35/1070
|
|
Fork width
|
b5(mm)
|
200~660
|
|
Minimum clearance from ground
|
m2(mm)
|
50~110
|
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
3300
|
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
3280
|
|
Turning radius
|
Wa(mm)
|
1510
|
|
Speed, full/no load
|
Km/h
|
4.5/5.2
|
|
Speed up, full load/ no load
|
m/s
|
0-0.12/0-0.2
|
|
Drop speed, full load/ no load
|
m/s
|
0-0.2/0-0.18(adjustable)
|
|
Climbing capacity, loading/unloading
|
%
|
May 8
|
|
Driving brake
|
|
Electromagnetic - regenerative braking
|
|
Drive motor power
|
kW
|
1.5(AC)
|
|
Lift motor power
|
kW
|
2.2
|
|
Battery voltage/ rated capacity
|
V/Ah
|
24V /130A/210A /24 A 0
|
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
