$68001-5 Piece/Pieces
$67306-9 Piece/Pieces
$6750≥10Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | FOB |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,TIANJING,QINGDAO |
Jenama: Lundi
Industri Yang Berkenaan: Kedai Bahan Bangunan, Loji Pembuatan, Penggunaan Rumah, Lain -lain, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Ladang, Kegunaan Rumah, Runcit, Tenaga & Perlombongan, Kedai Makanan & Minuman, Syarikat pengiklanan
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: Motor
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: Yang lain
Komponen Teras: Motor, Kapal tekanan, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: CPD-S15
Mod Pemacu: Elektrik
Mod Memandu: Elektrik
Berat (dengan Bateri): 1855
Ketinggian Angkat: 3500
Panjang Keseluruhan: 3100
Lebar Keseluruhan: 880
Sistem Kawalan Memandu: Ac
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Tempoh Jaminan: 1 tahun
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Lebar Garpu: 200-660
Pensijilan: CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem yang dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

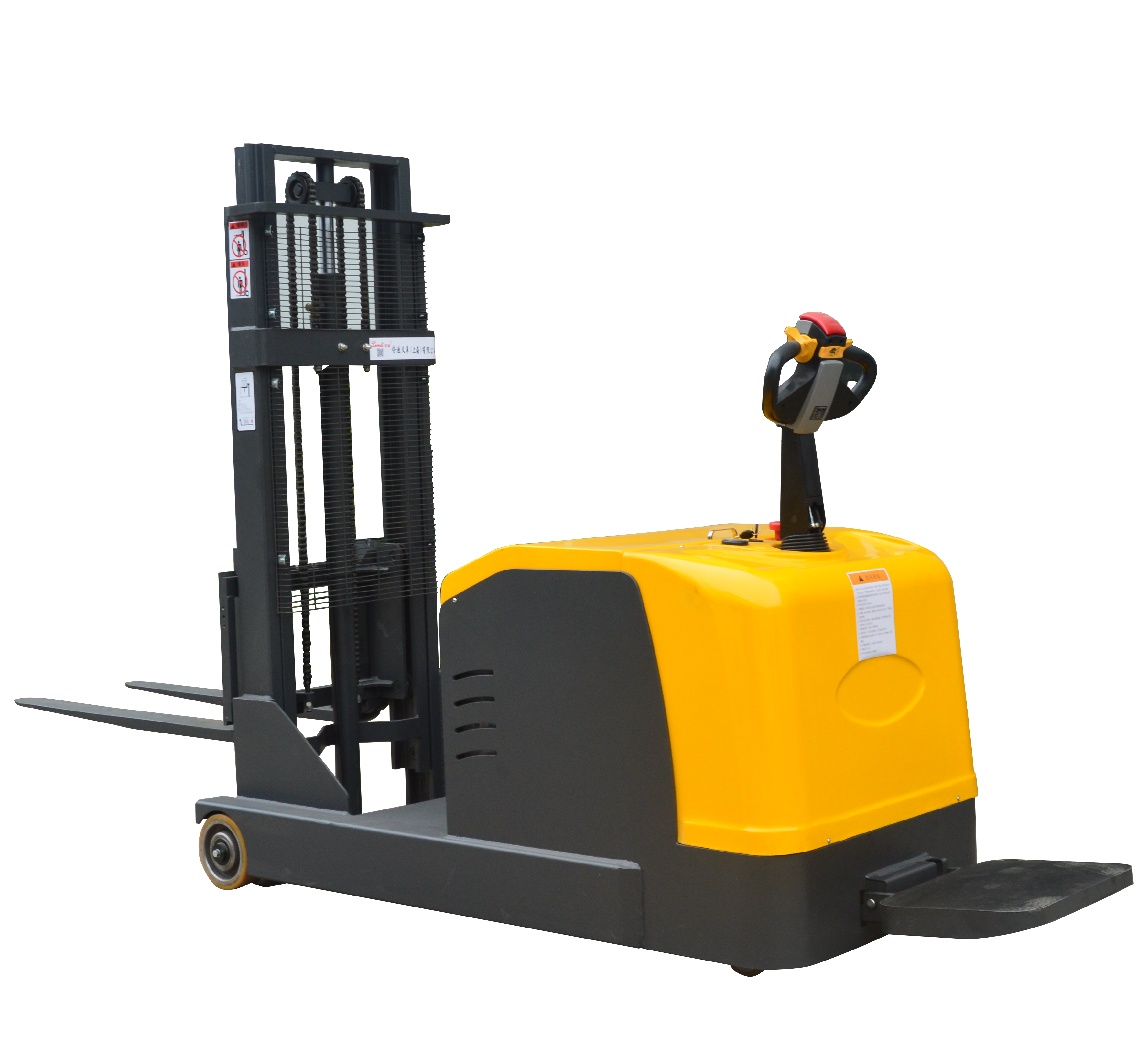

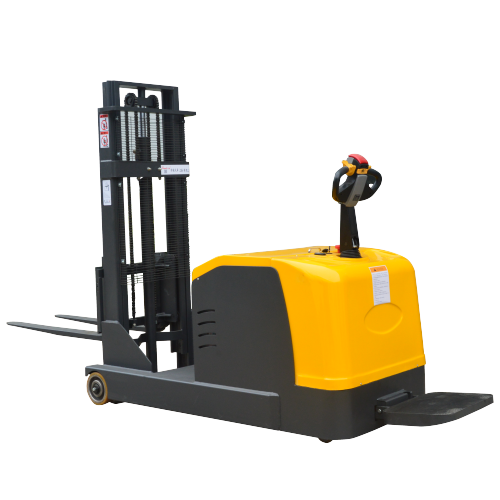

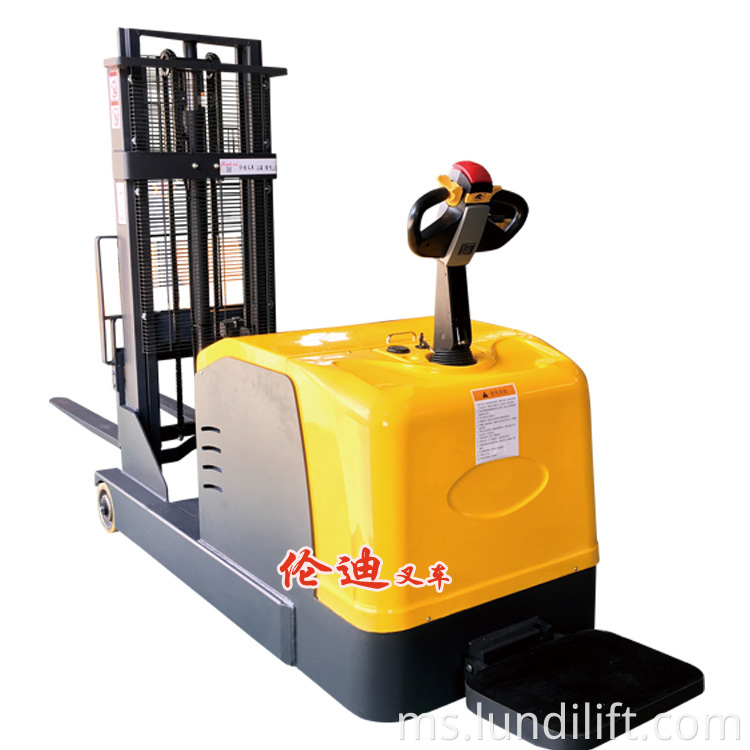

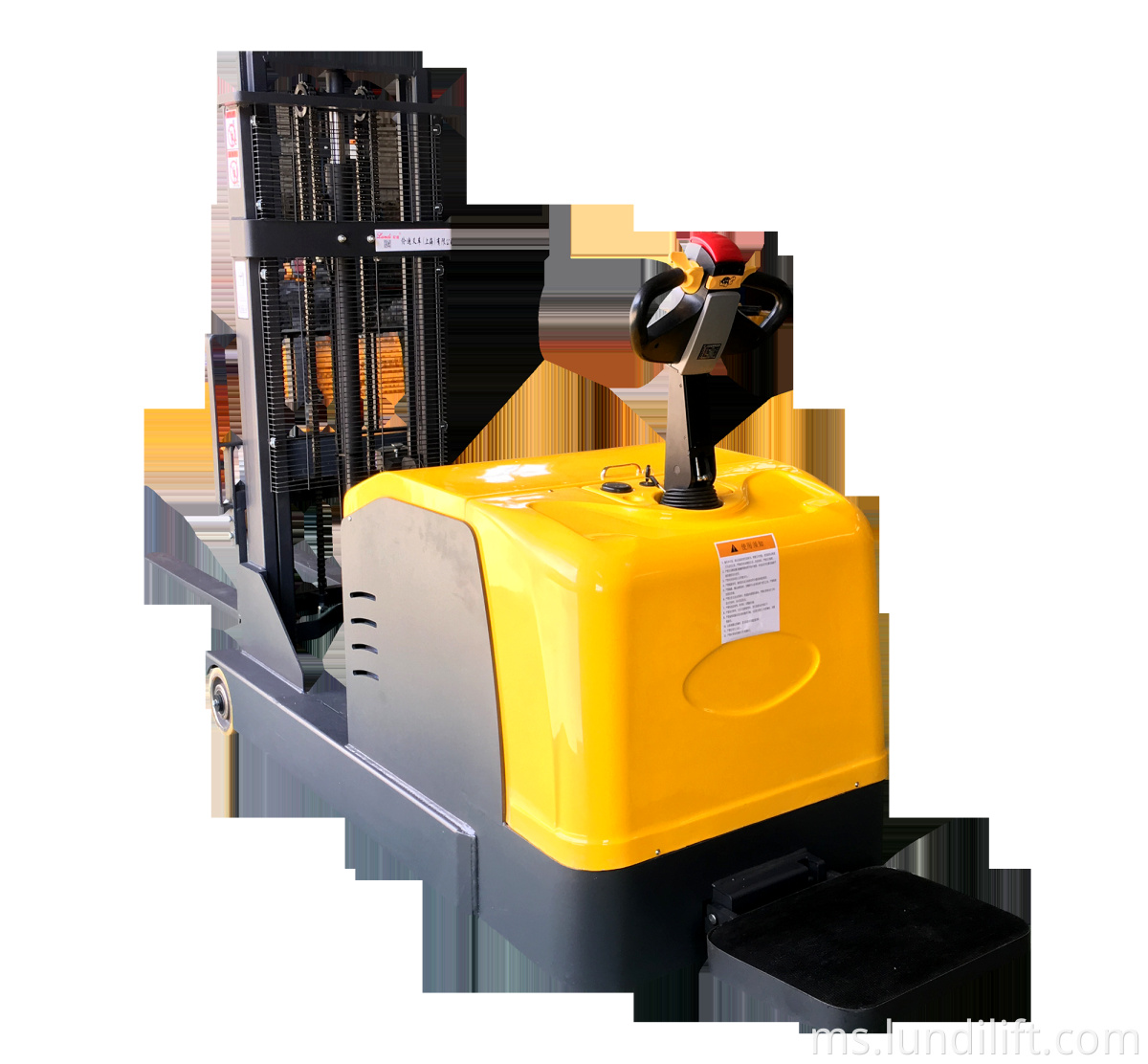

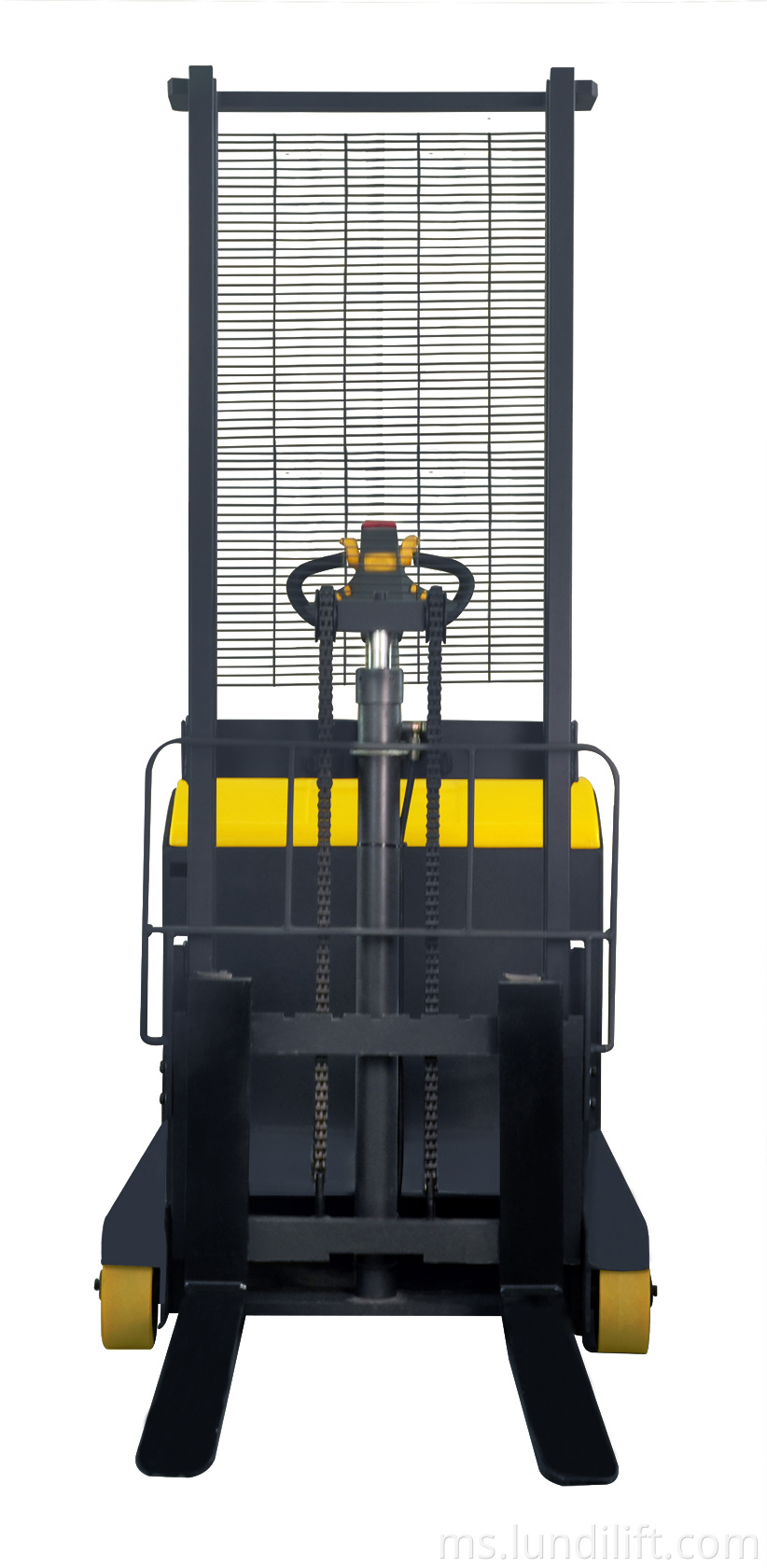

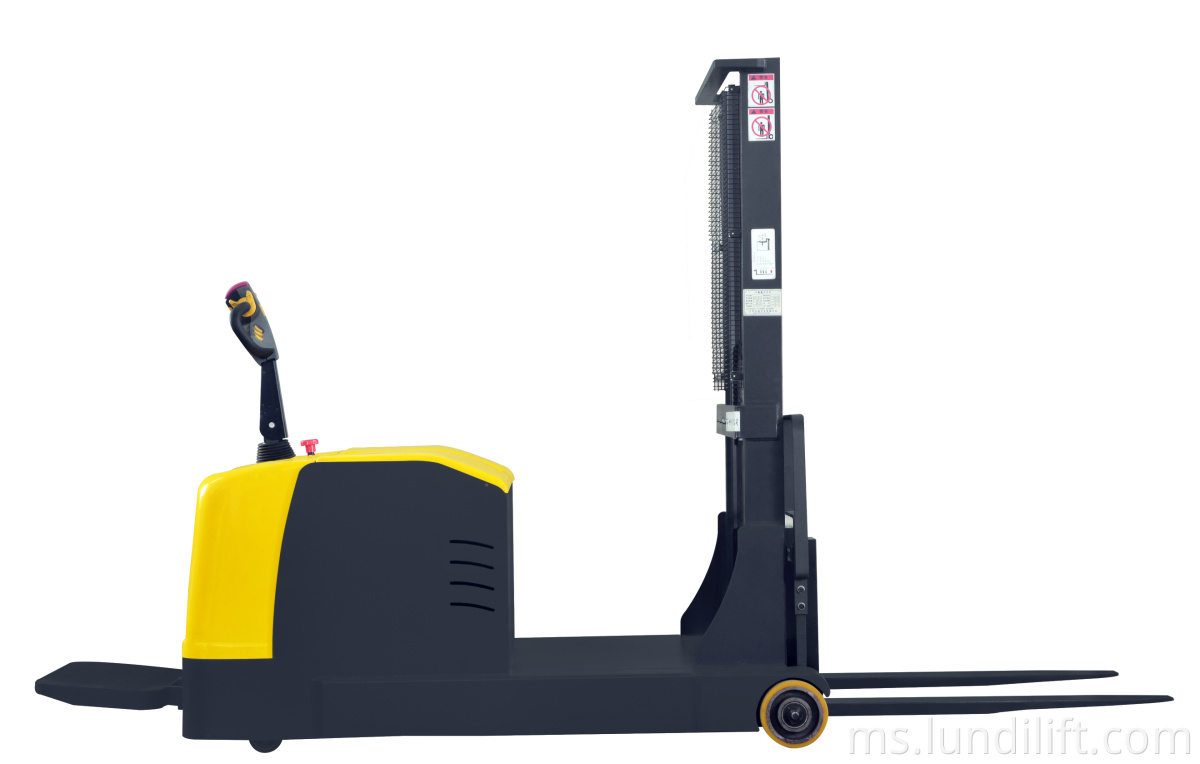

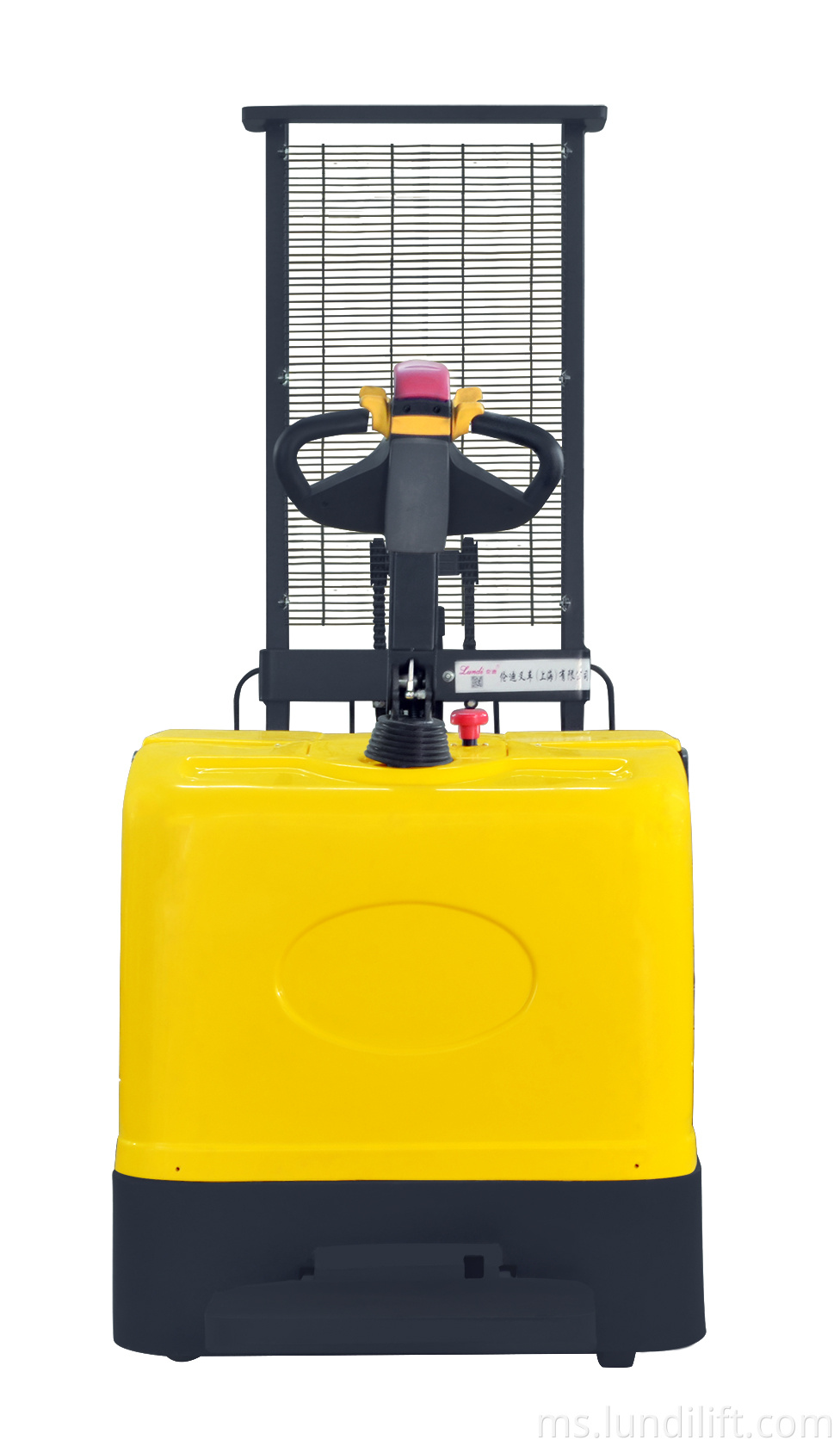

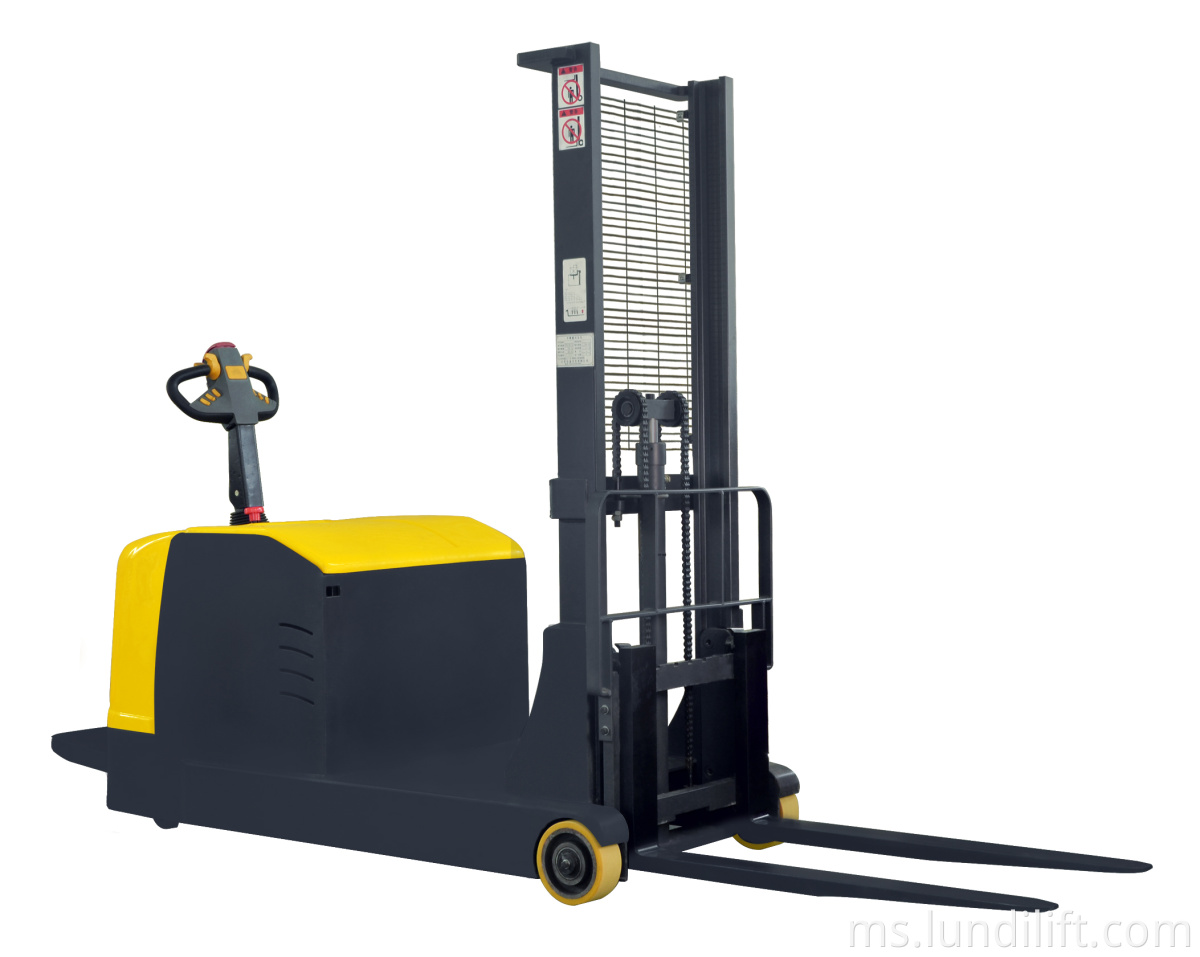

Stackers Elektrik Penuh (jenis memandu berdiri)
Pastikan keadaan memandu standard stacker semua elektrik. Apabila garpu memandu dari tanah, garpu adalah 10-20 cm dari tanah. Apabila stacker semua elektrik berhenti, garpu diturunkan ke aras tanah untuk memandu; Apabila bekerja pada keadaan jalan yang lemah, beratnya dikurangkan dengan sewajarnya, dan kelajuan memandu stacker semua elektrik harus dikurangkan.
|
Model
|
|
CPD-S15
|
|
Drive mode
|
|
Electric (battery)
|
|
Driving mode
|
|
Stand by
|
|
Rated load
|
Q (kg)
|
1000
|
|
Load centre distance
|
c (mm)
|
500
|
|
Wheel spacing
|
Y (mm)
|
1680
|
|
Weight (with battery)
|
kg
|
1855
|
|
Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels)
|
|
Polyamine ester wheel
|
|
Wheel size, front wheel
|
mm
|
Φ250×80
|
|
Wheel size, rear wheel
|
mm
|
Φ200X80
|
|
Wheel, front and rear number (x = drive wheel)
|
|
x/2 1
|
|
Rear wheel
|
b11(mm)
|
780
|
|
Lift height
|
h3(mm)
|
3500
|
|
Height of door frame lowered
|
h1(mm)
|
2340
|
|
Maximum vehicle height during operation
|
h4(mm)
|
4090
|
|
Lower height
|
h13(mm)
|
35
|
|
Overall length
|
l1(mm)
|
3100
|
|
Overall width
|
b1(mm)
|
880
|
|
Fork size
|
S/e/l (mm)
|
120/35/1070
|
|
Fork width
|
b5(mm)
|
200~660
|
|
Minimum clearance from ground
|
m2(mm)
|
50~110
|
|
Channel width, tray 1000 x1200(1200 cross fork placement)
|
Ast(mm)
|
3300
|
|
Channel width, pallet 800 x1200(1200 placed along fork)
|
Ast(mm)
|
3280
|
|
Turning radius
|
Wa(mm)
|
1510
|
|
Speed, full/no load
|
Km/h
|
4.5/5.2
|
|
Speed up, full load/ no load
|
m/s
|
0-0.12/0-0.2
|
|
Drop speed, full load/ no load
|
m/s
|
0-0.2/0-0.18(adjustable)
|
|
Climbing capacity, loading/unloading
|
%
|
May 8
|
|
Driving brake
|
|
Electromagnetic - regenerative braking
|
|
Drive motor power
|
kW
|
1.5(AC)
|
|
Lift motor power
|
kW
|
2.2
|
|
Battery voltage/ rated capacity
|
V/Ah
|
24V /130A/210A /24 A 0
|
|
Driver's Ear Noise Level DIN12053
|
dB (A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
