$19991-19 Piece/Pieces
$198920-99 Piece/Pieces
$1979≥100Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | FOB |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,NINGBO,TIANJING |
Model No.: CDD-A
Jenama: Lundi
Industri Yang Berkenaan: Hotel, kedai pakaian, kedai bahan binaan, kedai pembaikan jentera, kilang pembuatan, kilang makanan & minuman, penggunaan rumah, runcit, kedai makanan, kedai percetakan, tenaga & perlombongan, yang lain, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Kegunaan Rumah, Ladang, Runcit, Syarikat pengiklanan, Tenaga & Perlombongan, Kedai Makanan & Minuman
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: Motor
Min. Mengangkat Ketinggian: 90
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: Yang lain
Komponen Teras: Motor, Kapal tekanan, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Cara Memandu: Elektrik
Gaya Memandu: Berjalan
Jarak Pusat Beban: 500C (mm)
Roda: Roda poliuretana
Trek Roda Depan: 886b10 (mm)
Trek Roda Belakang: 525b11 (mm)
Ketinggian Apabila Diturunkan: 90h13 (mm)
Panjang Keseluruhan: 1760L1 (mm)
Lebar Badan: 800B1 (mm)
Lebar Garpu Luar: 690B5 (mm)
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Tempoh Jaminan: 1 tahun
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Panjang Garpu: 1100
Lebar Garpu: 1300
Pensijilan: CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem yang dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

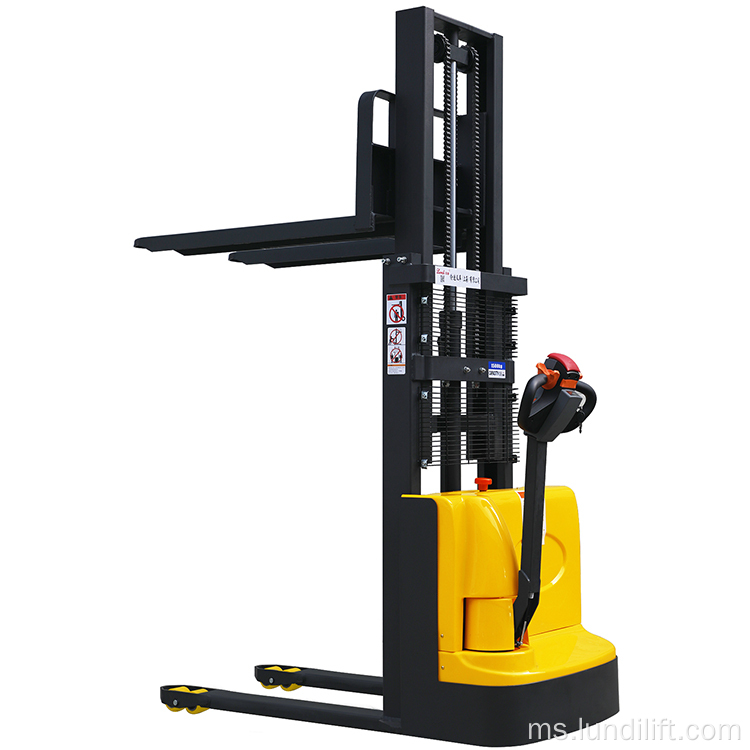

Stackers Elektrik Penuh (jenis walkie)
Stackers digunakan secara meluas di bengkel kilang, gudang, pusat peredaran dan pusat pengedaran, pelabuhan, stesen, lapangan terbang, halaman barang, dan lain -lain, dan boleh memasuki kabin, kereta dan bekas untuk memuatkan, memunggah, dan mengendalikan barangan pallet. Ia adalah peralatan yang sangat diperlukan untuk pengangkutan palet dan pengangkutan kontena. Walkie Stacker
|
model
|
|
CDD-A10/15
|
|
Drive way
|
|
Electric (battery)
|
|
Driving style
|
|
Walking
|
|
Rated load
|
Q(kg)
|
1000/1500
|
|
Load center distance
|
c(mm)
|
500
|
|
Weight (with battery)
|
kg
|
418/470/484/503/526
|
|
Wheels
|
|
Polyurethane wheel
|
|
Wheel size, front wheel
|
|
φ210×70
|
|
Wheel size, rear wheel
|
|
φ80×70
|
|
Additional wheel (size)
|
|
φ100×50
|
|
Wheels, number of front and rear (x = driving wheels)
|
|
1x+2/4
|
|
Front wheel track
|
b10(mm)
|
886
|
|
Rear wheel track
|
b11(mm)
|
525
|
|
Lifting height
|
h14(mm)
|
1600/2000/2500/3000/3500
|
|
Height when the mast is retracted
|
h15(mm)
|
2090/1590/1840/2090/2340
|
|
Height when lowered
|
h13(mm)
|
90
|
|
Overall length
|
l1(mm)
|
1760
|
|
Height of mast during operation
|
l2(mm)
|
2090/2550/3050/3550/4050
|
|
Body width
|
b1(mm)
|
1400
|
|
Fork size
|
S/e/l(mm)
|
60/170/1100
|
|
Outer width of fork
|
b5(mm)
|
1300
|
|
Ground clearance of wheelbase center
|
m2(mm)
|
40
|
|
Aisle width, pallet 1000x1200 (1200 placed across forks)
|
Ast(mm)
|
2200
|
|
Aisle width, pallet 800x1200 (1200 placed along the fork)
|
Ast(mm)
|
2100
|
|
Turning radius
|
Wa(mm)
|
1370
|
|
Driving speed, fully loaded/unloaded
|
Km/h
|
4/5.6
|
|
Lifting speed, fully loaded/unloaded
|
m/s
|
140
|
|
Lowering speed, full load/no load
|
m/s
|
101
|
|
Gradeability, loading/unloading
|
%
|
March 7
|
|
Service brake
|
|
Electromagnetic brake
|
|
Drive motor power
|
kW
|
0.75
|
|
Increase motor power
|
kW
|
2.2
|
|
Battery voltage/rated capacity
|
V/Ah
|
24V/80AH
|
|
Battery weight
|
Kg
|
26*2
|
|
Battery size (length X width X height)
|
mm
|
260*170*210
|
|
The noise level at the driver's ear complies with DIN12053
|
dB(A)
|
≤70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
