$72001-3 Piece/Pieces
$71804-9 Piece/Pieces
$7100≥10Piece/Pieces
| Jenis bayaran: | D/A,D/P,T/T,Western Union |
| Incoterm: | FOB,EXW |
| Pengangkutan: | Ocean,Land |
| Port: | SHANGHAI,QINGDAO,TIANJING |
Jenama: Lundi
Industri Yang Berkenaan: Hotel, kedai pakaian, kedai bahan binaan, kedai pembaikan jentera, kilang pembuatan, kilang makanan & minuman, ladang, runcit, kedai makanan, kedai percetakan, kerja pembinaan, tenaga & perlombongan, kedai makanan & minuman, syarikat pengiklana, Hotel, Kedai Pakaian, Kedai Bahan Binaan, Kedai Pembaikan Jentera, Loji Pembuatan, Ladang, Kegunaan Rumah, Runcit, Syarikat pengiklanan, Tenaga & Perlombongan, Kedai Makanan & Minuman
Lokasi Bilik Pameran: Tiada
Keadaan: Baru
Jenama: Lundi
Power Souce: AC Motor
Min. Mengangkat Ketinggian: 35mm
Dimensi Keseluruhan: 120/35/1070 S/E/L (mm)
Jaminan: 1 tahun
Laporan Ujian Jentera: Disediakan
Video Keluar Video: Disediakan
Waranti Komponen Teras: 1 tahun
Komponen Teras: Kapal tekanan, Motor, yang lain, Galas, Gear, Pam, Kotak gear, Enjin
Model: CPD-S15
Mod Pemacu: Elektrik
Berat (dengan Bateri): 1750-1880kg
Ketinggian Angkat: 1600mm
Panjang Keseluruhan: 3100mm
Lebar Keseluruhan: 880mm
Sistem Kawalan Memandu: Ac
Tempoh Jaminan: 1 tahun
Selepas Perkhidmatan Jaminan: Sokongan dalam talian
Lokasi Perkhidmatan Tempatan: Tiada
Perkhidmatan Selepas Jualan Disediakan: Sokongan dalam talian
Perkhidmatan Di Luar Jaminan: Sokongan teknikal video
Status: Baru
Tempat Asal: China
Bekalan Kuasa: Motor AC
Laporan Ujian Mekanikal: Dengan syarat
Pemeriksaan Kilang Video: Dengan syarat
Jenis Pemasaran: Produk Biasa
Tempoh Jaminan Komponen Teras: 1 tahun
Tempat Asal: Jiangsu, China
Panjang Garpu: 1070mm
Lebar Garpu: 200 ~ 660 mm, 200-660mm
Pensijilan: CE, CE
| Unit Jualan | : | Piece/Pieces |
| Jenis Pakej | : | Filem dibungkus, mengeksport palet standard atau kes kayu. Kaedah pembungkusan khusus boleh dibincangkan. |
| Contoh Gambar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

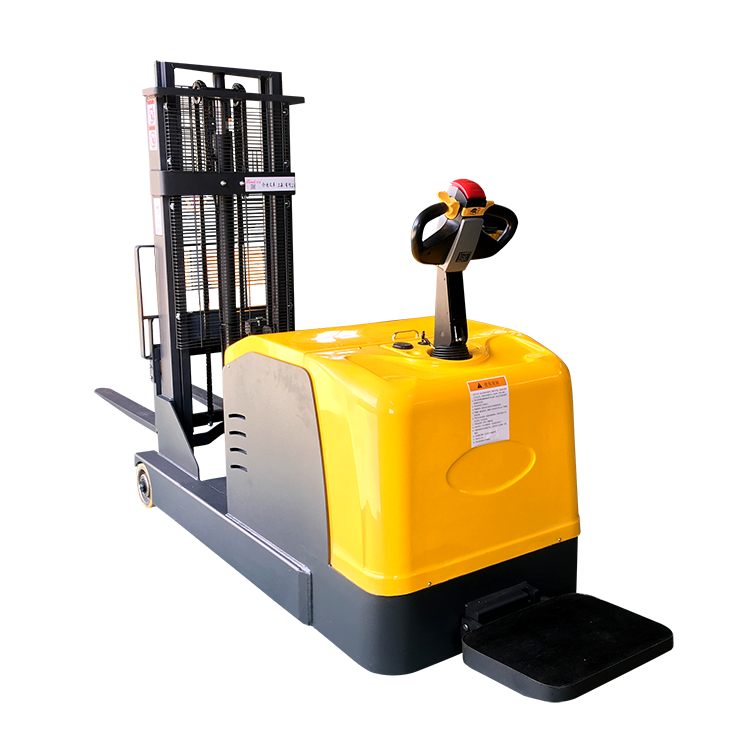

Berdiri di Stacker Pallet
Semasa operasi stacker semua elektrik, jangan salahkan suis arah "ke hadapan, terbalik" sebagai suis stereng. Jangan tekan pedal brek sepanjang jalan melainkan anda perlu menurun dengan ketara. Semasa operasi kenderaan, apabila didapati bahawa kuasa bateri tidak mencukupi (yang boleh diperolehi melalui meter elektrik, cahaya penunjuk kuasa dan peranti penggera lain), bateri harus dikenakan secepat mungkin untuk mencegah bateri daripada terlalu dibebankan.
| Model | CPD-S20 | |
| Drive mode | Electric (battery) | |
| Driving mode | Stand by | |
| Rated load | Q (kg) | 2000 |
| Load centre distance | c (mm) | 500 |
| Wheel spacing | Y (mm) | 1680 |
| Weight (with battery) | kg | 1750-1880 |
| Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels) | Polyamine ester wheel | |
| Wheel size, front wheel | mm | Φ250×80 |
| Wheel size, rear wheel | mm | Φ200X80 |
| Wheel, front and rear number (x = drive wheel) | x/2 1 | |
| Rear wheel | b11(mm) | 780 |
| Lift height | h3(mm) | 4500 |
| Height of door frame lowered | h1(mm) | 2090 |
| Maximum vehicle height during operation | h4(mm) | 5090 |
| Lower height | h13(mm) | 35 |
| Overall length | l1(mm) | 3100 |
| Overall width | b1(mm) | 880 |
| Fork size | S/e/l (mm) | 120/35/1070 |
| Fork width | b5(mm) | 200~660 |
| Minimum clearance from ground | m2(mm) | 50~110 |
| Channel width, tray 1000 x1200(1200 cross fork placement) | Ast(mm) | 3300 |
| Channel width, pallet 800 x1200(1200 placed along fork) | Ast(mm) | 3280 |
| Turning radius | Wa(mm) | 1510 |
| Speed, full/no load | Km/h | 4.5/5.2 |
| Speed up, full load/ no load | m/s | 0-0.12/0-0.2 |
| Drop speed, full load/ no load | m/s | 0-0.2/0-0.18(adjustable) |
| Climbing capacity, loading/unloading | % | May 8 |
| Driving brake | Electromagnetic - regenerative braking | |
| Drive motor power | kW | 1.5(AC) |
| Lift motor power | kW | 2.2 |
| Battery voltage/ rated capacity | V/Ah | 24V /130A/210A /24 A 0 |
| Driver's Ear Noise Level DIN12053 | dB (A) |
≤70 |
| Model | CPD-S20 | |
| Drive mode | Electric (battery) | |
| Driving mode | Stand by | |
| Rated load | Q (kg) | 2000 |
| Load centre distance | c (mm) | 500 |
| Wheel spacing | Y (mm) | 1680 |
| Weight (with battery) | kg | 1750-1880 |
| Wheels (rubber wheels, high elastomers, air tyres, polyamine ester wheels) | Polyamine ester wheel | |
| Wheel size, front wheel | mm | Φ250×80 |
| Wheel size, rear wheel | mm | Φ200X80 |
| Wheel, front and rear number (x = drive wheel) | x/2 1 | |
| Rear wheel | b11(mm) | 780 |
| Lift height | h3(mm) | 4500 |
| Height of door frame lowered | h1(mm) | 2090 |
| Maximum vehicle height during operation | h4(mm) | 5090 |
| Lower height | h13(mm) | 35 |
| Overall length | l1(mm) | 3100 |
| Overall width | b1(mm) | 880 |
| Fork size | S/e/l (mm) | 120/35/1070 |
| Fork width | b5(mm) | 200~660 |
| Minimum clearance from ground | m2(mm) | 50~110 |
| Channel width, tray 1000 x1200(1200 cross fork placement) | Ast(mm) | 3300 |
| Channel width, pallet 800 x1200(1200 placed along fork) | Ast(mm) | 3280 |
| Turning radius | Wa(mm) | 1510 |
| Speed, full/no load | Km/h | 4.5/5.2 |
| Speed up, full load/ no load | m/s | 0-0.12/0-0.2 |
| Drop speed, full load/ no load | m/s | 0-0.2/0-0.18(adjustable) |
| Climbing capacity, loading/unloading | % | May 8 |
| Driving brake | Electromagnetic - regenerative braking | |
| Drive motor power | kW | 1.5(AC) |
| Lift motor power | kW | 2.2 |
| Battery voltage/ rated capacity | V/Ah | 24V /130A/210A /24 A 0 |
| Driver's Ear Noise Level DIN12053 | dB (A) |
≤70 |
S1: Adakah anda kilang?
A1: Sudah tentu.
Q2. Bagaimana lona yang diperlukan untuk melaksanakan myorder?
A2.Please Beritahu kami jumlah kuantiti dan model produk yang akan anda pesan. supaya wewigiveyouadetaiedschedule
Q3.Adakah anda menawarkan reka bentuk tersuai?
A3.CUSTOM DESIQN pasti ada. Kami mempunyai pengalaman yang sangat kaya dalam menyesuaikan forklift.
S4: Bagaimana dengan dasar sampel?
A4 kita boleh menerima pesanan sampel untuk menguji kualiti. Tapi sampel dan caj ekspres mestilah di akaun pelanggan
S5: Bagaimana dengan Penghantaran Waktu?
A5: Biasanya Lundi menghasilkan masa 15-20 hari bekerja setelah kami menerima pembayaran lanjutan
Bagi sesetengah produk standard yang paling banyak ada dalam stok dan boleh dilepaskan
S6: Apakah istilah pembayaran anda?
A6: T/T atau L/C, jika anda mahukan cara lain, sila hubungi kami.
S7: Mayivisit syarikat anda?
A7.Kami sentiasa gembira untuk melayani anda kilang kami terletak di wilayah Taizhoujangang. Terdapat penerbangan antarabangsa yang berdekatan dan lalu lintas dibangunkan dengan baik.
